On-Q 364569-02-V1 Surge Protected Duplex Power Kit 364569-02-V1
- MPN: 364569-02-V1
- UPC: 804428020943
- PPN: P-S-36456902V1
- UNSPSC: 39121610
CAD
$112.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This surge protected outlet kit is the power source of devices mounted in the low voltage enclosure. It is designed to mount in the rectangular knockout location at the bottom of the enclosure. Surge suppression provides protection for hot to neutral, hot to ground, and neutral to ground. The audible alarm signals when surge protection has expired.
Features
- 120VAC, 15A
- Connect with the AC1031 to add six AC power outlets in the enclosure

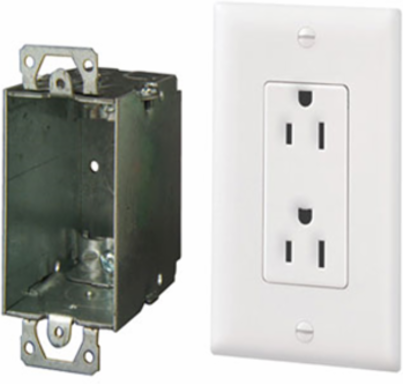

- Kit includes a surge protected duplex outlet, metal junction box, and a faceplace kit
Documentation & Downloads
Specifications
Technical Information
- AC Voltage Output
- 120 VAC
- Connection Method
- Screw terminal
- Material
- Thermoplastic
- Mounting
- Enclosure base
- Operating Temperature (Celsius)
- -20°C to 55°C
- Storage Temperature
- -40°C to 85°C
- Receptacle Type
- NEMA 5-15R Female
- Surge Suppression
- UL1449 Transient Voltage Surge Suppressor
Amps15A
Frequency60 Hz
Max Surge Current9kA
Noise Reduction7
Product Fits IntoSingle-Gang
Wire Gauge10 - 14 AWG, copper conductor only
Number Of Receptacles2
Dimensions
- Depth (Metric)
- 4.8 cm
- Height (Metric)
- 11.4 cm
- Width (Metric)
- 7 cm
Depth (US)1.9"
Height (US)4.5"
Width (US)2.75 in
Construction Information
- Installation Location
- On-Q enclosures
General Info
- Color
- White
- Input Plug Type
- NEMA 5-15R Male
- Number Of Wires
- 3
TypeSurge-Suppressing Outlet
Number Of Poles2
Listing Agencies/Third Party Certifications
- UN SPSC
- 39121610
Assembly/Installation Information
- Mounting Hardware Included
- Screws
