Square D TVS3DSPVC Surge Suppressor Display Kit, 3 Phase, 120 kA Surge Current

MPN: TVS3DSPVC
UPC: 785901252047
PPN: SCH-TVS3DSPVC

$2357.42

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

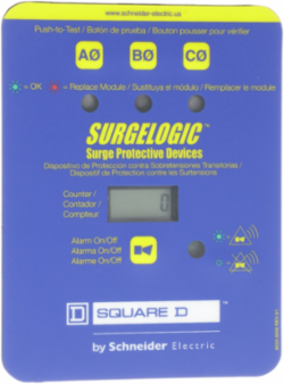

Transient voltage surge suppressor (TVSS) units protect sensitive electronic equipment from transients. TVSS is a modular parallel device designed for service entrance, distribution or branch panel applications. This kit is a digital display unit and counter. It is for three phase panels, switchboards, and switchgear. The unit has a vertical orientation with the RJ45 patch cable connection at the side of the unit. This display unit is a replacement for TVSS Surgelogic.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Important Information Attributes

Persona Type Ids	EU, LC
Product Or Component Type	industrial digital display unit, counter module
Carbon Footprint Of The Distribution Phase [A4]	0.13952670991891208, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0013205624115370262, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	85 kg CO2 eq., 84.55630279900357
Local Publishable Date	2025-11-13
Stocking Flag	N
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2508025EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2531
China Rohs In Scope	No
Without Single Use Plastic	Yes
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. CELL : ≤ 1g AND > 4 Cells in Package
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Device Short Name	IMA
Local Signalling	LED green per phase normal operationalarm error
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	No
Pep Code	ENVPEP2508025EN
Pep Verification Date	2025-08-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	69
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536308000

Persona Type Names	End User, Contractor
[Ue] Rated Operational Voltage	120/240 V AC, 208Y/120 V AC, 480Y/277 V AC, 600Y/347 V AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	2 kg CO2 eq., 1.9599569255113394
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	12 kg CO2 eq., 12.150159955909738
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Energy Efficiency Optimized	False
Phase	3 phase
Range Of Product	Surgelogic
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	99 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	175.2
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Connections - Terminals	RJ45 connector side
Package Weight(Lbs)	1.089 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	98.8072669527551
Environmental Disclosure	ENVPEP2508025EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI2508025EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2508025EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
