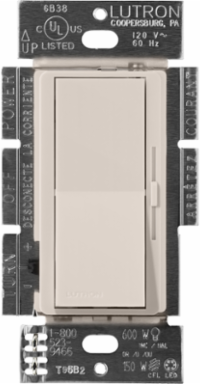

Lutron DVSCTV-TP Diva Dimmer Switch, 0-10V, Taupe, Paddle Switch, 4.69 x 2.94 Inch
- MPN: DVSCTV-TP
- UPC: 027557663571
- PPN: LUT-DVSCTV-TP
- UNSPSC: 39122206
CAD
$104.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmer switch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), Power Pack (PP-DV) required. Coordinating wall plate and required Power Pack sold separately.
Features
- For use in controlling 0-10-Volt LED drivers and/or fluorescent ballasts
- Separate Power Pack (PP-DV) required for dimmer; Power Pack requires Neutral.
- Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
- Can be used in single pole or 3-way applications
- Easily replaces existing switch and installs in as little as 15 minutes
- Includes (1) Diva 0-10V dimmer switch; coordinating wall plate and required Power Pack (PP-DV) sold separately
- Controls 0-10 V LED or fluorescent fixture loads, 30 mA max control current
- Paddle turns on/off
- Slide up to brighten, down to dim
- Power pack required.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Finish
- Satin
- Connection Type
- Wire Leads
- Environmental Conditions
- Indoor use only
- Frequency Rating, Minimum
- 50 Hz
- Operating Temperature, Maximum
- 104 F
- Switch Type
- Paddle Switch
- Voltage Rating
- 24
- Frequency Rating
- 50 to 60 Hz
- Color
- Taupe
- Enclosure
- Plastic
- Insulation
- Plastic
- Mounting
- Wallbox
- Size
- 4.69 x 2.94;119 x 75 in;mm
ApplicationLighting Control
Decorative ColorTaupe
Family ColorGray
Number of Poles1
Operating Temperature, Minimum32 F
TypeDimmer, single-pole
Face MaterialMetal;Plastic
ActuatorPaddle switch
ConnectionWire Leads
FinishSatin
MaterialPlastic/Metal
Operating Temperature32 to 104 F
