nVent Hoffman DNG1806R5 Glazed Door 70.16 x 23.35 x 0.66 Inch Mild Steel Light Gray
- MPN: DNG1806R5
- UPC: 783510467722
- PPN: HOF-DNG1806R5
- UNSPSC: 39121321
CAD
$2315.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

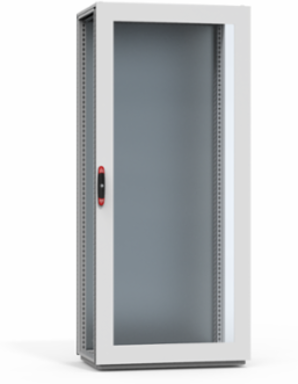

Glazed door with fitted clear safety glass to view the inside of the enclosure. This Glazed Doors, DNG, DNG1806R5 item measures 1782x593x17mm with a material of Mild Steel, color Light Gray.
Features
- Description: Glazed door with fitted clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking program. Compatible with combinable and compact enclosure ranges.
- Material: Frame: 2 mm steel plate. Viewing area: 4 mm clear safety glass.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55, TYPE 12, IK 07.
- Pack quantity: 1 piece.
- Mounting requirements: Use hinge kit DNMK01 if no door was fitted previously.
Documentation & Downloads
Specifications
Additional
- Window Size
- 1576 x 415 mm
- Weight
- 20.4 kg
- Material
- Mild Steel, Clear Safety Glass
- Color
- RAL 7035 Light Gray
- Lock System
- Double-bit 3 mm
Size70.16 x 23.35 x 0.66 in.
Thickness2 mm
FinishRAL 7035 structured powder coating
ProtectionIP 55, TYPE 12, IK 07
