Documentation & Downloads

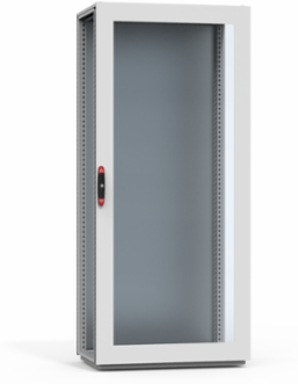

nVent Hoffman DNG2006R5 Glazed Doors 78.03 x 23.35 x 0.66 Inch Light Gray Mild Steel
- MPN: DNG2006R5
- UPC: 783510467760
- PPN: HOF-DNG2006R5
- UNSPSC: 39121321
CAD
$2447.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Glazed door with fitted clear safety glass to view the inside of the enclosure. This Glazed Doors, DNG, DNG2006R5 item measures 1982x593x17mm with a material of Mild Steel, color Light Gray.
Features
- Description: Glazed door with fitted clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking program. Compatible with combinable and compact enclosure ranges.
- Material: Frame: 2 mm steel plate. Viewing area: 4 mm clear safety glass.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55, TYPE 12, IK 07.
- Pack quantity: 1 piece.
- Mounting requirements: Use hinge kit DNMK01 if no door was fitted previously.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 593
- Window Size
- 1776 x 415
- Enclosure Material
- Mild Steel
- Finish
- Powder Coated
- Thickness (T)
- 2
- Weight
- 21.9
- Size
- 78.03 x 23.35 x 0.66 inch
- Construction
- 14 gauge
Height (H)1,982
Depth (D)17
Works WithIEC
Product FamilyFree-Standing
Color CodeRAL 7035
Package Quantity1
MaterialMild Steel
ColorRAL 7035 Light Gray
Consist ofGlazed Doors; Mounting Components and Instruction Manual
