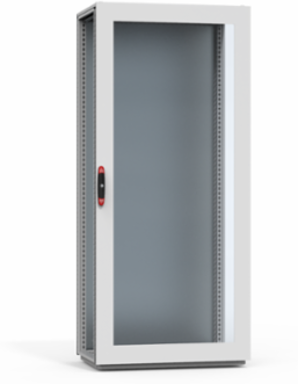

nVent Hoffman DNG2206R5 Glazed Door 85.91 x 23.35 x 0.66 Inch, Light Gray, Mild Steel
- MPN: DNG2206R5
- UPC: 783510467845
- PPN: HOF-DNG2206R5
- UNSPSC: 39121321
CAD
$2756.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Glazed door with fitted clear safety glass to view the inside of the enclosure. This Glazed Doors, DNG, DNG2206R5 item measures 2182x593x17mm with a material of Mild Steel, color Light Gray.
Features
- Description: Glazed door with fitted clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking program. Compatible with combinable and compact enclosure ranges.
- Material: Frame: 2 mm steel plate. Viewing area: 4 mm clear safety glass.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55, TYPE 12, IK 07.
- Pack quantity: 1 piece.
- Mounting requirements: Use hinge kit DNMK01 if no door was fitted previously.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 593 |
| Window Size | 1976 x 415 |
| Enclosure Material | Mild Steel |
| Finish | Powder Coated |
| Thickness (T) | 2 |
| Weight | 24.8 |
| Size | 85.91 x 23.35 x 0.66 inch |
| Construction | 14 gauge |
| Height (H) | 2,182 |
|---|---|
| Depth (D) | 17 |
| Works With | IEC |
| Product Family | Free-Standing |
| Color Code | RAL 7035 |
| Package Quantity | 1 |
| Material | Mild Steel |
| Color | RAL 7035 Light Gray |
| Consist of | Glazed Doors; Mounting Components and Instruction Manual |
