Schneider Electric VW3A1112 Altivar Door Mounting Kit for Remote Graphic Terminal IP65
- MPN: VW3A1112
- PPN: SCH-VW3A1112
CAD
$105.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

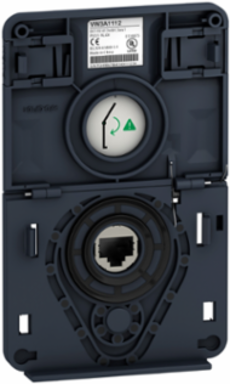

This door mounting kit is an accessory for variable speed drives of Altivar range. This door mounting kit is designed for mounting the graphic terminal on enclosure door with IP 65/UL Type 12 degree of protection as standard. It comprises a tightening tool, cover plate to maintain IP 65 if no terminal connected, mounting plate, RJ45 for graphic display terminal, seal, fixing nut, anti-rotation pin, RJ45 for mounting cordset (10m maxi), grounding connector. A remote-mounting cordset VW3A1104Rxx has to be ordered separately.
Features
- Engineered to meet strict IP65 and UL Type 12 environmental standards, this door mounting kit provides a tight, impenetrable seal against moisture, airborne dust, and non-corrosive liquids. This high-grade protection guarantees that your drive enclosure maintains its industrial safety rating, ensuring safe external control monitoring even in harsh wastewater treatment, food processing, or washdown environments.
- Designed with absolute system flexibility in mind, this universal kit is fully compatible across multiple Schneider Electric drive platforms, including the Altivar Process ATV600, ATV900, Altivar Machine ATV320, ATV340, and Altivar Easy 610. By supporting multiple VFD lines, it streamlines your spare parts inventory and simplifies commissioning across various plant automation systems and motor control centers.
- hipped as a fully comprehensive installation package, this kit includes a mounting plate, fixing nut, seal, anti-rotation pin, grounding connector, and an explicit tightening wrench tool. By providing specialized mounting accessories out of the box, it removes the hassle of finding third-party fastening hardware and accelerates deployment schedules for field electricians and control panel builders.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, Indonesia, Singapore, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Kit Composition | fixing nut, mounting plate, anti-rotation tee, tightening wrench |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.014396 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.6 kg CO2 eq., 0.64194 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Product/component not in scope – not electric/electronic device |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1927 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2010010EN |
| Pep Verification Date | 2020-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Accessory / Separate Part Type | mounting kit |
| Package Weight(Lbs) | 128.000 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Manufacturing [A1-a3] | 47.049 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle | 7.627 |
| Non-hazardous Waste Disposed Of (Kg) Total Life Cycle | 0.5973 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 8.3602 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle | 9.0714 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 0.3324 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 2.2099 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 6.1502 |
| Water Pollution (M3) Total Life Cycle | 120.22 |
| Water Pollution (M3) Distribution [A4] | 2.6713 |
| Water Pollution (M3) End Of Life [C1-c4] | 1.0028 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.016244, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0034257, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Range Of Product | Altivar |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 0.7 kg CO2 eq. |
| Database Version | 2018-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This kit allow to fix a graphic display terminal on a eletrical cabinet. & 10Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 100% uptime in use phase. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Recyclability Potential In % | 2 |
| Accessory / Separate Part Destination | variable speed drive |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Total Life Cycle | 48.728 |
| Air Pollution (M3) Distribution [A4] | 0.691 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 7.2716 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 8.7383 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] | 0.0427 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 8.6926 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 2.2099 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 6.5283 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] | 0.0427 |
| Water Pollution (M3) Manufacturing [A1-a3] | 116.05 |
| Water Pollution (M3) Installation [A5] | 0.4872 |
| Customs Code | 8504909690 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2010010EN |
| Ip Degree Of Protection | IP65 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2010010EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Carbon Footprint | 0.67601 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-12-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Range Of Product | Altivar |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
