Schneider Electric VW3A95811 UL Type 1 Conformity Kit for ATV320 Drives, Size 1C (72mm x 81.4mm x 98.8mm)
- MPN: VW3A95811
- PPN: SCH-VW3A95811
CAD
$75.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

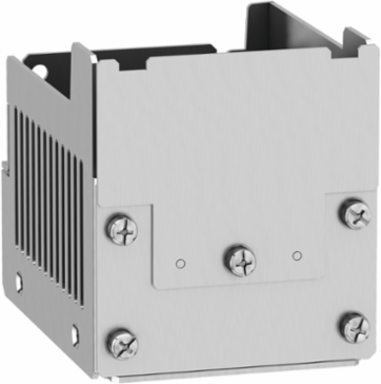

This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This conformity kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 1C (72mm/2.83in wide x 81.4mm/3.2in high, and 98.8mm/3.89in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.370kg (0.816lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320-C drives, rated at 0.18kW, 0.37kW, 0.55kW, or 0.75kW, to feed single phase motors from 200V to 240V. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Features
- This conformity kit converts your drive to meet strict UL Type 1 requirements, ensuring full safety and regulatory compliance. It provides the essential mechanical protection required by inspectors, allowing you to confidently pass field evaluations without costly project delays.
- Engineered specifically for Schneider Electric Altivar Machine ATV320 compact drives, this size 1C kit perfectly matches frame sizes from 0.18 kW to 0.75 kW on 200 240V single-phase lines. This precise physical alignment eliminates the guesswork of universal mounting solutions, guaranteeing a seamless, tight-tolerance fit.
- By installing this kit directly to the underside of the drive, you gain the freedom to mount your variable speed drive directly to a wall or machine frame outside of a traditional control enclosure. This localized mounting capability saves valuable backpanel real estate and cuts down on expensive enclosure costs.
- The mechanical housing allows power, motor, and control cables to be routed directly into the drive via standard electrical conduit tubes or cable glands. This structured pathway shields vulnerable wiring from accidental physical damage while maintaining the clean layout required for high-end industrial machinery.
- This conformity kit features dedicated internal space for securing and grounding cable shielding directly to the drive s chassis. By grounding the motor cable shield inside the kit, it effectively minimizes electromagnetic interference (EMI) and prevents high-frequency noise from disrupting nearby sensors or control logic.
Documentation & Downloads
Specifications
Additional
- Product Compatibility
- variable speed drive ATV320-C 0.18 kW, 0.37 kW, 0.55 kW, 0.75 kW, 200-240 V, single phase
- Frame Size
- 1C (72 mm x 81.4 mm x 98.8 mm)
- Compliance
- UL Type 1
- Range Compatibility
- Altivar Machine ATV320
- Kit Composition
- mechanical device
- Accessory / Separate Part Destination
- variable speed drive
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Locationunderside of drive
Weight0.370 kg (0.816 lb)
Range Of ProductAltivar
Accessory / Separate Part Typekit for UL type 1 conformity
Accessory / Separate Part Categorymounting and fixing accessories
Reach Free Of SvhcYes
Rohs Exemption InformationYes
Reach RegulationFree of Substances of Very High Concern above the threshold
