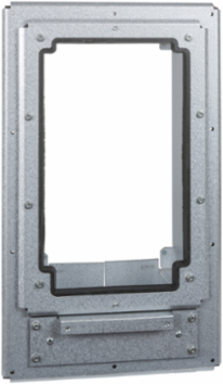

Schneider Electric VW3A9514 Dust and Damp Proof Mounting Kit for ATV61/ATV71 Drives, 4.7 kg
- MPN: VW3A9514
- PPN: SCH-VW3A9514
CAD
$1220.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This kit can be used to mount the power section of your variable speed drive outside the enclosure. This solution considerably reduces dissipated losses in the enclosure. With this type of mounting, the maximum internal temperature in the enclosure can then reach 60°C without derating. The back of the enclosure must be drilled and cut out for this type of mounting.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, China, France
Important Information Attributes
- Kit Composition
- 1 cutting and drilling template, 1 fan support, 1 user manual, 1 metal frame of the right size for drive rating, corner pieces, fixing accessories, seals
- Local Publishable Date
- 2026-04-30
- Stocking Flag
- Y
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2003
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Persona Type Names
- End User
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Environmental Characteristic
- dust and damp proof
- Product Specific Application
- for mounting the drive power section outside the enclosure
- Returnability
- Yes
- Accessory / Separate Part Category
- mounting and fixing accessory
- Accessory / Separate Part Type
- mounting kit
- Package Weight(Lbs)
- 8.000 kg
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Weee ApplicabilityComponent
Weee Exclusion RationaleProduct/component not in scope – not electric/electronic device
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Persona Type IdsEU
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductAltivar
Sustainable PackagingNo
Accessory / Separate Part Destinationvariable speed drive without braking unit
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504909690
Environment Attributes Main
- Product Compatibility
- variable speed drive ATV900 315 kW, 380...480 V, ATV61HC25N4D without braking unit, ATV61HC25Y without braking unit, ATV61HC31N4 without braking unit, ATV61HC31N4D without braking unit, ATV61HC31Y without braking unit, ATV61HC40Y without braking unit, ATV71HC20N4 without braking unit, ATV71HC20N4D without braking unit, ATV71HC20Y without braking unit, ATV71HC25N4 without braking unit, ATV71HC25N4D without braking unit, ATV71HC25Y without braking unit, ATV71HC28N4 without braking unit, ATV71HC28N4D without braking unit, ATV71HC31Y without braking unit, ATV61HC25N4variable speed drive ATV600 250 kW, 380...480 V, variable speed drive ATV600 315 kW, 380...480 V, variable speed drive ATV900 250 kW, 380...480 V
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
China Rohs RegulationX
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- Altivar
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
