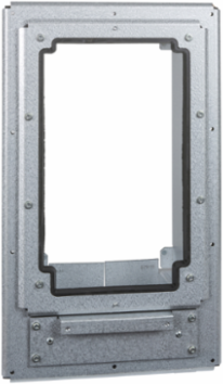

Schneider Electric VW3A9513 kit for flush-mounting in a dust and damp proof enclosure - ATV61/ATV71

kit for flush-mounting in a dust and damp proof enclosure - ATV61/ATV71
  • MPN: VW3A9513
  • PPN: SCH-VW3A9513

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1216.14/ EA

Description

This kit can be used to mount the power section of your variable speed drive outside the enclosure. This solution considerably reduces dissipated losses in the enclosure. With this type of mounting, the maximum internal temperature in the enclosure can then reach 60°C without derating. The back of the enclosure must be drilled and cut out for this type of mounting.

Specifications

Environment

Environmental Characteristic
dust and damp proof

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Kit Composition
1 cutting and drilling template || 1 fan support || 1 user manual || 1 metal frame of the right size for drive rating || corner pieces || fixing accessories || seals
Net Weight4.7 kg

Specifications

Range Of Product
Altivar
Accessory / Separate Part Category
mounting and fixing accessory
Product Compatibility
ATV61HC22N4 || ATV61HC22N4D || ATV71HC16N4 || ATV71HC16N4D || variable speed drive ATV600 220 kW, 380...480 V || variable speed drive ATV900 220 kW, 380...480 V
Accessory / Separate Part Destination
variable speed drive
Product Specific Applicationfor mounting the drive power section outside the enclosure
Range CompatibilityAltivar 61 || Altivar Process ATV600 || Altivar 71 || Altivar Process ATV900
Accessory / Separate Part Typemounting kit
