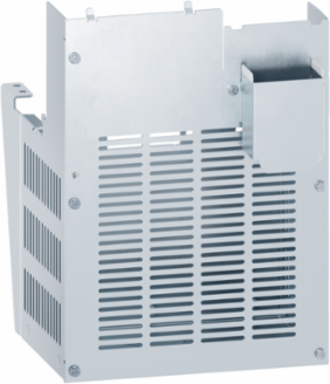

Schneider Electric VW3A9925 kit for UL type 1 conformity, Altivar machine ATV320, for variable speed drive
- MPN: VW3A9925
- PPN: SCH-VW3A9925
CAD
$199.97
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. This option is designed for size 6 drives. Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 2.6kg. This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320D18N4C and ATV320D22N4C drives. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Features
- Plug-and-work solution
- Easy to install
- For simple industrial machines
- Energy saving
- Less time for wiring and design
- Different size for easy integration in all machine
- Performance with no settings
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|
| Weight | 2600 g |
|---|
Important Information Attributes
| Carbon Footprint Of The Distribution Phase A4 | 0.4767841145521561, 0.5 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 1.56503202661508, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-06-17 |
| Return Indicator | Y |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Range Of Product | Altivar Machine ATV320 |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 25 kg CO2 eq. |
| Data Source | referent product |
| Accessory / Separate Part Category | mounting and fixing accessories |
| Accessory / Separate Part Type | kit for UL type 1 conformity |
| Customs Code | 7326908688 |
| Functional Unit Description | To provide the Ul Type 1 conformity for an Altivar Machine ATV320 product range for 10 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 2.981031928406362 |
|---|---|
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 20 kg CO2 eq., 20.08780214940363 |
| Local Data Status | Publishable |
| Pre Comm Date | 2025-06-06 |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVPEP2510059EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2418 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Certificate Agency | UL Type 1 |
| Accessory / Separate Part Destination | variable speed drive |
| Nbr. Of Units In Pkg. | 1 |
| Packaging Weight In G | 601.3 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 25.110650218977227 |
| Environmental Disclosure | ENVPEP2510059_V1 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2510059_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVPEP2510059EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-09-01 |
| Psr Version | No PSR |
General Attributes
| Range Of Product | Altivar Machine ATV320 |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
