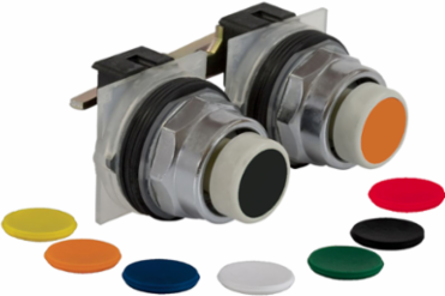

Square D 9001KR12U Double-headed push-button head, Harmony 9001K, metal, flush, 7 colours choice, 30mm, 1 latching, 1 spring return, with mechanical interlocking
Square D 9001KR12U Double-headed push-button head, Harmony 9001K, metal, flush, 7 colours choice, 30mm, 1 latching, 1 spring return, with mechanical interlocking
- MPN: 9001KR12U
- UPC: 785901008910
- PPN: SCH-9001KR12U
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$210.83/ EA
Description
Double-headed push-button head, Harmony 9001K, metal, flush, 7 colours choice, 30mm, 1 latching, 1 spring return, with mechanical interlocking
Specifications
Specifications
- Range Of Product
- Harmony 9001K
- Device Short Name
- 9001K
Product Or Component Typehead for double-headed push-button
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- NEMA || UL 508
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || JIS C 4520 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C 852
Shock Resistance50 gn IEC 60068-2-27
Protective TreatmentTC
Complementary
- Contacts Type And Composition
- without contact block
- Operator Profile
- flush 7 colours choice unmarked
- Mounting Diameter
- 30 mm
- Electrical Shock Protection Class
- class II IEC 61140
- Shape Of Signaling Unit Head
- octagonal
- Net Weight
- 0.54 kg
Bezel Materialmetal
Mechanical Durability5000000 cycles
Type Of Operator1 latching, 1 spring return
Operating Positionany position
Cap/Operator Or Lens Colour7 colours choice
