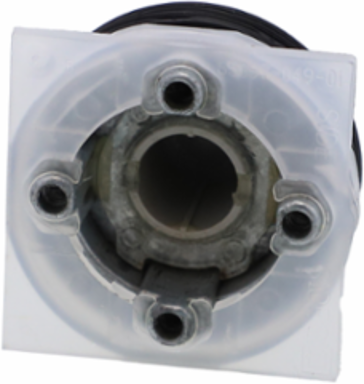

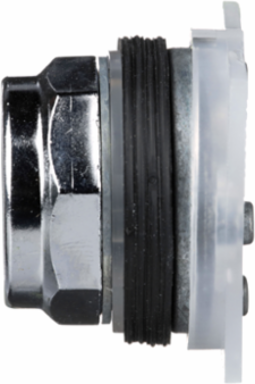

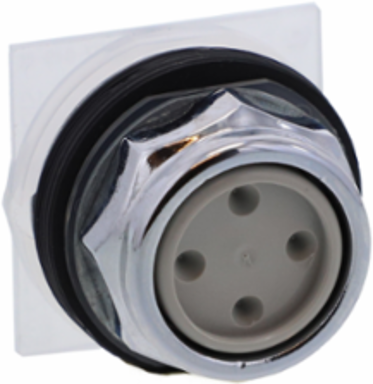

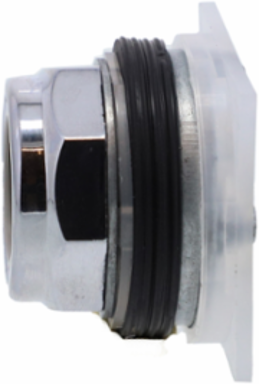

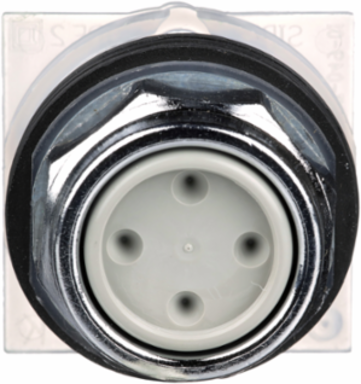

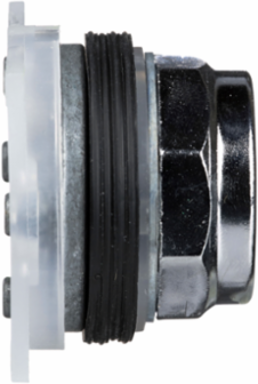

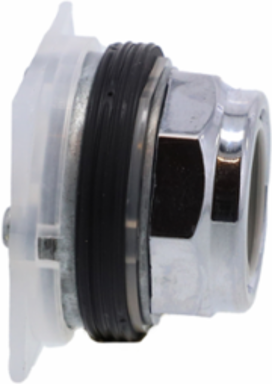

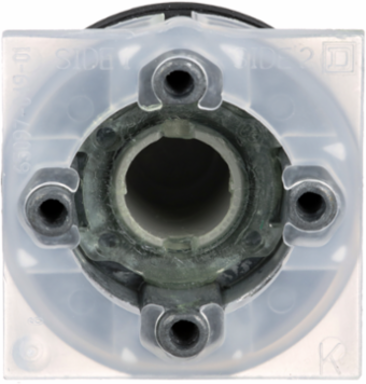

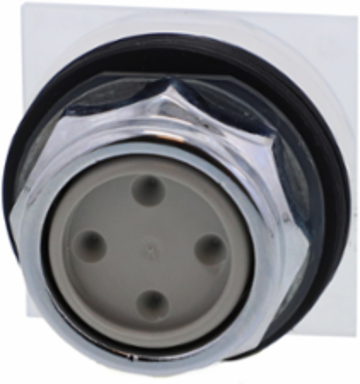

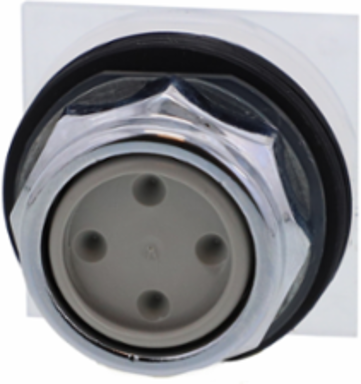

Schneider Electric 9001KR1U Harmony 9001K Metal Flush Push Button Head, 30mm, Spring Return, 7 Colors
- MPN: 9001KR1U
- UPC: 785901874706
- PPN: SCH-9001KR1U
CAD
$49.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001K, modular flush push button with full guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel. This flush push button with full guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Features
- Built with a heavy-duty, corrosion-resistant chrome-plated zinc bezel, this 9001K series operator is specifically engineered to withstand the mechanical abuse of factory floors and washdown environments. This rugged "oil-tight" design ensures long-term operational reliability in your control station, preventing the frequent, costly replacements often associated with cheaper plastic alternatives.
- This kit includes a complete set of seven interchangeable color caps (Black, Red, Green, Yellow, Blue, Orange, and White), allowing for instant on-site reconfiguration of your control station. This versatility eliminates the need to stock multiple dedicated units, enabling you to clearly distinguish between Start, Stop, Reset, or Forward/Reverse functions according to international ISO and OSHA safety color-coding standards.
- Engineered with high-performance sealing, this non-illuminated push button is fully rated to resist high-pressure water washdowns, dust ingress, and oil splashes. This superior environmental protection ensures consistent electrical contact performance in food processing facilities and industrial workshops, preventing internal corrosion and premature switch failure.
- The 9001KR1U features a "Full Guard" shrouded design, which protects the actuator from being pressed by falling debris or accidental bumps by technicians. This critical safety design feature reduces the risk of unintended machine cycles, protecting both your expensive automated equipment and your personnel while providing a tactile, deliberate "push" sensation for the operator.
Documentation & Downloads
Specifications
Additional
- Type of Operator
- spring return
- Operator Profile
- flush, unmarked
- Bezel Material
- chromium-plated metal
- Material
- impact and corrosion resistant metal (bezel and body)
- Mercury Free
- Yes
- Warranty
- 18 months
- Country of Origin
- Mexico
Mounting Diameter30 mm (1.18 in)
Shape of Signaling Unit Headround
Net Weight0.087 kg (0.19 lb)
Ingress ProtectionIP66
RoHS CompliancePro-active compliance, China RoHS, EU RoHS exemption
Cap Colors7 colours choice
