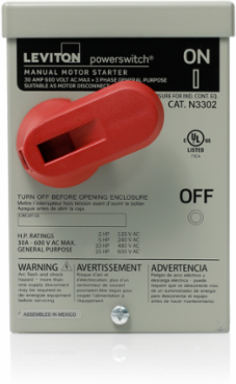

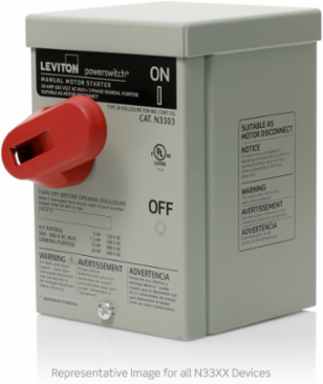

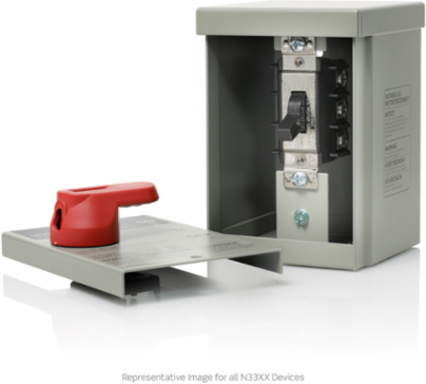

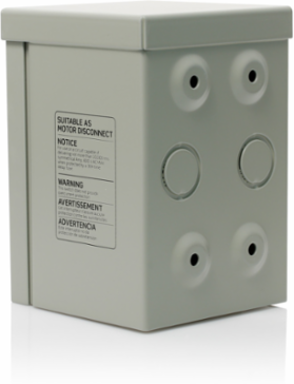

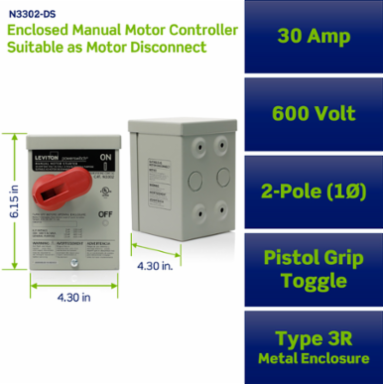

Leviton N3302-DS 30 Amp AC Manual Motor Controller, 600 Volt, Type 3R Enclosure

30 Amp AC Manual Motor Controller, 600 Volt, Type 3R Enclosure
30 Amp AC Manual Motor Controller, 600 Volt, Type 3R Enclosure
30 Amp AC Manual Motor Controller, 600 Volt, Type 3R Enclosure
30 Amp AC Manual Motor Controller, 600 Volt, Type 3R Enclosure
30 Amp AC Manual Motor Controller, 600 Volt, Type 3R Enclosure
  • MPN: N3302-DS
  • UPC: 078477374405
  • PPN: LEV-N3302-DS

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$82.87/ EA

Description

30 Amp, 600 Volt, Toggle In Type 3R Enclosure Double-Pole AC Manual Motor Controller, Suitable as Motor Disconnect, Industrial Grade, Grounded To Enclosure, Side Wired, - Gray

Features

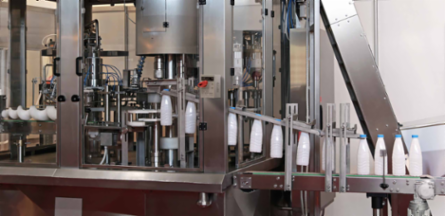

  • Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.

Specifications

Standards and Certifications

ANSI
C-73
NOM
NOM-ANCE
Warranty
10-Year Limited
NEMAWD-1 & WD-6
UL 60947-4-1supersedes UL 508
cUL per CSA C22.2 No. 111File #E63969

Material Specifications

Base Material
Thermoplastic Polyester
Enclosure Cover Material
Steel
Strap Material
Nickel Plated Brass
Toggle
Thermoplastic Polyester
ContactsSilver-Cadmium .031 Thick
Face MaterialThermoplastic Polyester
Terminal ScrewsNickel-Plated Brass 10-32
YokeNickel-Plated Brass

Mechanical Specifications

Product ID
Ratings are permenantly marked on device
Terminal ID
T1, T2, L1, & L2 marked on back of device
Torque Range
25 inch pounds maximum
Terminal Accom.#10-#8 AWG
TerminationBack & Side

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Color
Gray
Device TypeEnclosed Switch

Environmental Specifications

Enclosure Rating
Type 3R
Operating Temperature
-40°C to 60°C
FlammabilityRated V-0 per UL 94

Electrical Specifications

Amperage
30 A
Endurance
6,000 cycles inductive motor type load
Pole
2
Voltage
600 VAC
Dielectric VoltageWithstands 2200V for 1 min.
GroundingGrounded To Enclosure
Temperature Rise50ºC Max at full rated current

Downloads
