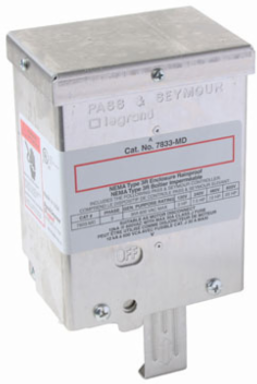

Pass & Seymour 7833MD 30 Amp Manual Motor Controller, 3 Pole, 3 Phase, 600VAC
- MPN: 7833MD
- UPC: 785007267709
- PPN: P-S-7833MD
CAD
$111.59
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
30 Amp Manual Motor Controller, 3 Pole, 3 Phase, 600VAC
Features
- High Horsepower rating of 20HP
- Gull-wing shaped brass terminal pressure clamps
- Constructed of glass-reinforced thermoplastic
- UL508 and cULus Listing of individual device and assembled device within enclosure
- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
- External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.8 in |
|---|---|
| Color | Aluminum |
| Width | 4.5 in |
| Country of Origin | Mexico |
| Load Type | CFL |
| Amperage | 30.0 A |
| Voltage | 600.0 V |
| Load Type | Halogen |
| Standard | UL Listed |
| Indoor/Outdoor | Both |
| Standard | CSA Listed |
| Mounting Type | On-Wall |
| Enclosure Type | NEMA 3R |
| Number of Switches | 1.0 |
| Wall Plate Included | No |
| Operating Cycles | 50000.0 |
| Load Rating | 30 A @ 600 VAC |
| Application Sector | Industrial |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Special Features | Three Pole, Three Phase AC Manual Motor Controller, suitable as Motor Disconnect |
| Height | 5.75 in |
|---|---|
| Finish | Matte |
| Material | Aluminum |
| Product Line | Pass & Seymour |
| Load Type | LED |
| Load Type | Xenon |
| Features | Enclosed |
| Number of Gangs | 1 |
| Switch Type | Toggle |
| Load Type | Universal |
| Load Type | Fluorescent |
| Number of Poles | 3-Way |
| Load Type | Incandescent |
| Type | Manual Controller |
| Throw Type | Triple Throw |
| Requires Neutral Wire | Yes |
| Application Sector | Commercial |
| Environmental Conditions | UL94 V2 |
| Wire Connection Type | Screw Terminals |
| Terminal Accommodation | #14 AWG - #10 AWG |
