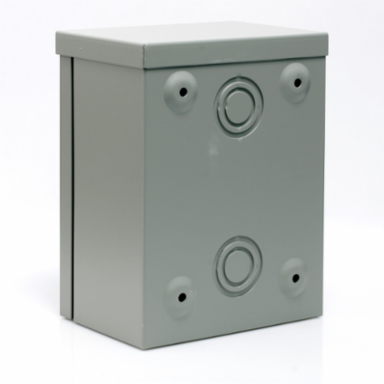

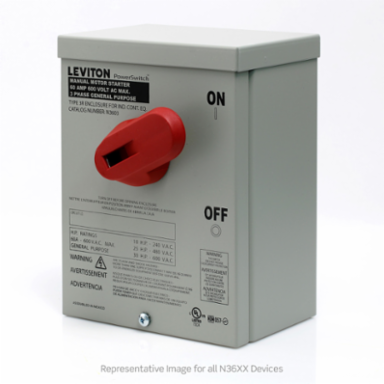

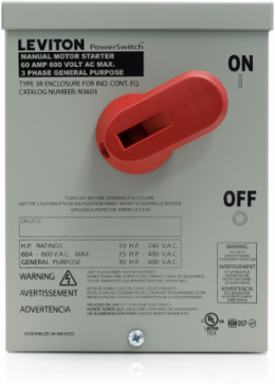

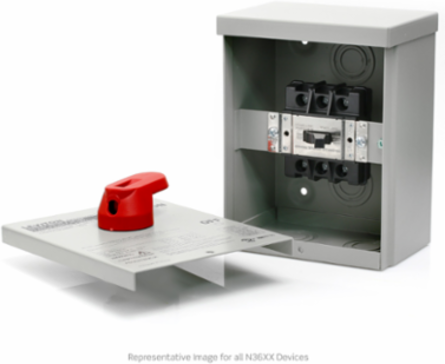

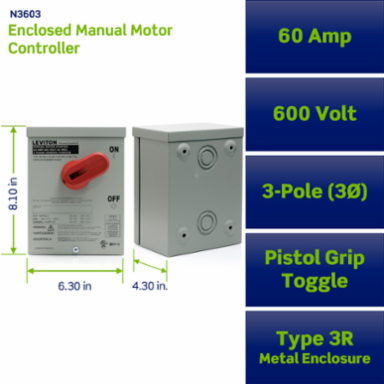

Leviton N3603 60 Amp, 600 Volt, 3-Pole, Non-Fused Manual Motor Controller
Leviton N3603 60 Amp, 600 Volt, 3-Pole, Non-Fused Manual Motor Controller
- MPN: N3603
- UPC: 078477101865
- PPN: LEV-N3603
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$144.64/ EA
Description
60 Amp, 600 Volt, Toggle In Type 3R Enclosure Three-Pole AC Manual Motor Controller, Industrial Grade, Grounded To Enclosure, Front Wired, - Gray
Features

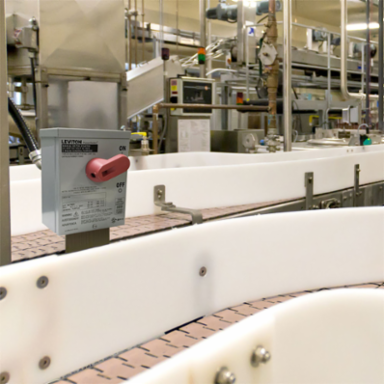

- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Specifications
Standards and Certifications
- ANSI
- C-73
- NOM
- NOM-ANCE
- Warranty
- 10-Year Limited
NEMAWD-1 & WD-6
UL 60947-4-1supersedes UL 508
cUL per CSA C22.2 No. 111File #E63969
Material Specifications
- Base Material
- Thermoplastic Polyester
- Contacts
- .046" Thick Silver-Cadmium Oxide
- Face Material
- Thermoplastic Polyester
- Strap Material
- Nickel Plated Brass
- Toggle
- Thermoplastic Polyester
ColorGray
Enclosure MaterialPowder-Coated Steel
Handle MaterialValox 357 PBT
Terminal ScrewsZinc-Plated Steel, Triple Combination
YokeNickel-Plated Brass
Mechanical Specifications
- Product ID
- Ratings are permenantly marked on device
- Terminal ID
- T1, T2, T3, L1, L2 & L3 marked on back of device
- Torque Range
- 25 inch pounds maximum
Terminal Accom.10-4 AWG
TerminationFront
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Device Type
- Enclosed Switch
Environmental Specifications
- Enclosure Rating
- Type 3R
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 60 A
- Endurance
- 6,000 cycles inductive motor type load
- Pole
- 3
- Voltage
- 600 VAC
Dielectric VoltageWithstands 2200V for 1 min.
GroundingNon-Grounding
Temperature Rise50ºC Max at full rated current
AC Horsepower Ratings
- HP Rating
- 10HP-240V 25HP-480V 30HP-600V
Downloads
