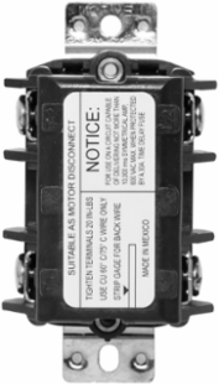

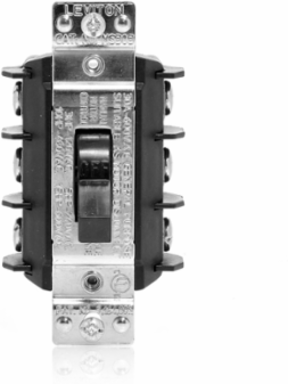

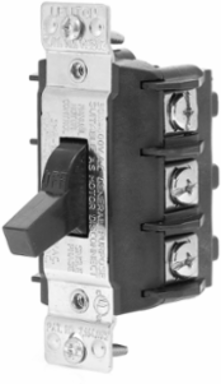

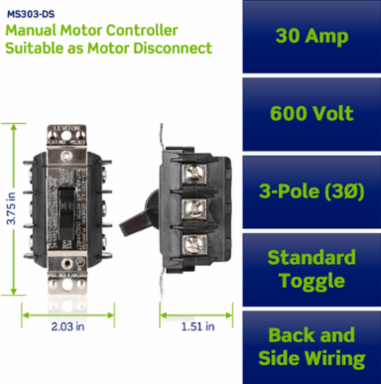

Leviton MS303-DS 30 Amp 600 Volt 3-Pole AC Manual Motor Controller, Non-Grounding, Black
- MPN: MS303-DS
- UPC: 078477374153
- PPN: LEV-MS303-DS
CAD
$68.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
30 Amp, 600 Volt, 3-Pole, Three-Phase Single Throw AC Manual Motor Controller, Suitable as Motor Disconnect, Standard Toggle, Industrial Grade, Non-Grounding, Back & Side Wiring - Black
Features
- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- HP Rating
- 3HP-120V, 7.5HP-240V, 15HP-480V, 20HP-600V
- Overload UL20 Test
- 50 cycles at 6× full rated current
- Pole
- 3
- Temperature Rise
- 50°C Max at full rated current
- Phase
- Three-Phase
- Grounding
- Non-Grounding
- Material
- Thermoplastic Polyester, Silver-Alloy, Nickel-Plated Brass
- Strap Material
- Nickel-Plated Brass
- Terminal Screws
- Nickel-Plated Brass 10-32, Triple Combination
- Terminal Accom.
- #10 - #8 AWG
- Flammability
- Rated V-0 per UL 94
- NEMA
- WD-1 & WD-6
- UL Standard
- UL 60947-4-1 supersedes UL 508
- RoHS Compliant
- False
- Country of Origin
- Mexico
Voltage600 VAC
Short Circuit Current Rating10,000 RMS symmetrical amps at 600V AC max when protected by 30A time delay fuse
Dielectric VoltageWithstands 2200 VAC for 1 min
Endurance6,000 cycles inductive motor load
Torque Range20 inch pounds maximum
TypeSingle Throw AC Manual Motor Controller
TerminationBack & Side
Cover MaterialThermoplastic Polyester
ContactsSilver-Alloy
Terminal IDT1, T2, T3, L1, L2 & L3 marked on back of device
ToggleThermoplastic Polyester
ANSIC-73
NOMNOM-ANCE
cULper CSA C22.2 No. 111 File #E63969
ColorBlack
Warranty10-Year Limited
