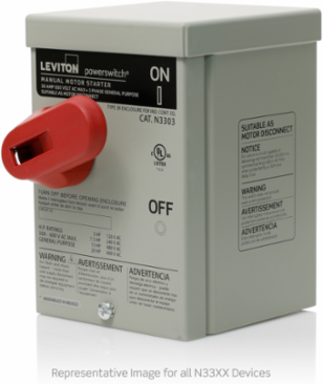

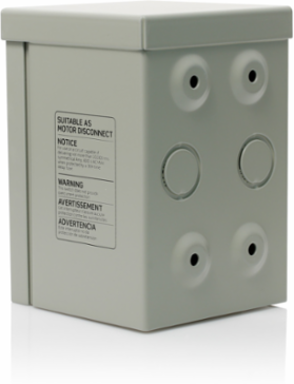

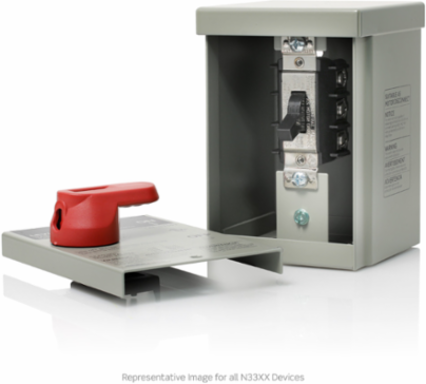

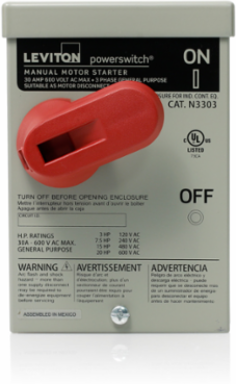

Leviton N3303-DS Three-Pole AC Manual Motor Controller
Leviton N3303-DS Three-Pole AC Manual Motor Controller
- MPN: N3303-DS
- UPC: 078477374412
- PPN: LEV-N3303-DS
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$90.70/ EA
Description

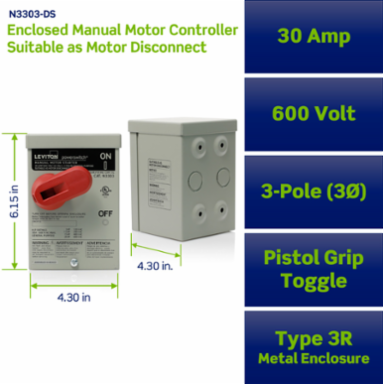

30 Amp, 600 Volt, Toggle In Type 3R Enclosure Three-Pole AC Manual Motor Controller, Suitable as Motor Disconnect, Industrial Grade, Grounded To Enclosure, Back and Side Wired, - Gray
Features

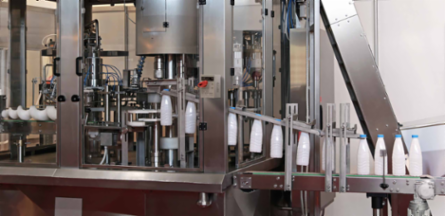

- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Specifications
Standards and Certifications
- ANSI
- C-73
- NOM
- NOM-ANCE
- Warranty
- 10-Year Limited
NEMAWD-1 & WD-6
UL 60947-4-1supersedes UL 508
cUL per CSA C22.2 No. 111File #E63969
Material Specifications
- Base Material
- Thermoplastic Polyester
- Enclosure Cover Material
- Steel
- Strap Material
- Nickel Plated Brass
- Toggle
- Thermoplastic Polyester
ContactsSilver-Cadmium .031 Thick
Face MaterialThermoplastic Polyester
Terminal ScrewsNickel-Plated Brass 10-32
YokeNickel-Plated Brass
Mechanical Specifications
- Product ID
- Ratings are permenantly marked on device
- Terminal ID
- T1, T2, T3, L1, L2 & L3 marked on back of device
- Torque Range
- 25 inch pounds maximum
Terminal Accom.#10-#8 AWG
TerminationBack & Side
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Color
- Gray
Device TypeEnclosed Switch
Environmental Specifications
- Enclosure Rating
- Type 3R
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Endurance
- 6,000 cycles inductive motor type load
- Pole
- 3
- Voltage
- 600 VAC
Dielectric VoltageWithstands 2200V for 1 min.
GroundingGrounded To Enclosure
Temperature Rise50ºC Max at full rated current
Downloads
