Greenlee SVM-25/K02 High Voltage Voltmeter 5V-25kV, 14 Inch x 4.6 Inch x 4.1 Inch, LED Display
- MPN: SVM-25/K02
- UPC: 783310555421
- PPN: GRN-SVM-25/K02
- UNSPSC: 41113637
CAD
$3758.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Voltage Voltmeter 5V-25kV, 14 Inch x 4.6 Inch x 4.1 Inch, LED Display
Features
- Measures voltage from 5V to 25kV line to line
- Large, easy to read LED display

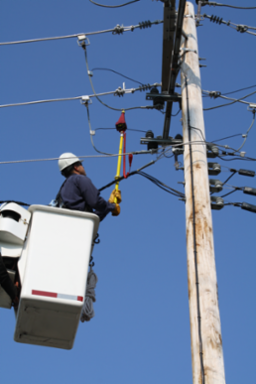

- Versatile for overhead and underground applications
- Capacitive Test Point and Peak Hold modes
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Type | Voltmeter |
| Voltage Rating | 5V - 25kV line-to-ground |
| Display | LED 0.7" letter height |
| Dimensions | 14" L x 4.6" W x 4.1" H (36 cm x 12 cm x 10 cm) |

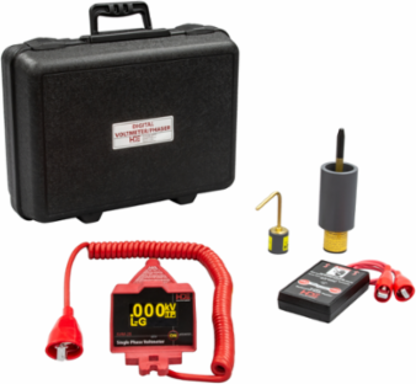

| Included | SVM-25, 025-OLPS-5 Overhead Brass Hook Probe, ASP-15/25 UG Bushing Probe, PT-5000B Proof Tester Proof Tester, CS-SVM Case |
| Sub Brand | HDE |
|---|---|
| Model | SVM-25 |
| Accuracy | Within 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements) |
| Operating Temperature | -20°F to +120°F (-29°C to +49°C) |
| Frequency Rating | 25–1000Hz |
Regulations
| REACH Compliant | Yes |
|---|
