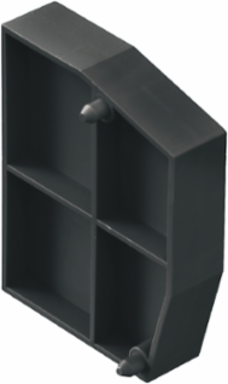

Weidmuller 1250620000 DP WGK 95 BK BX
- MPN: 1250620000
- PPN: WDM-1250620000
CAD
$2.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
OMNIMATE Power - series WGK, Feed-through terminal
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 50 mm
- Width
- 15 mm
- Height
- 74 mm
- Net weight
- 13.25 g
Length (inches)1.969 inch
Width (inches)0.591 inch
Height (inches)2.913 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
Material Data
- Insulating material
- Wemid (PA)
- Colour chart (similar)
- RAL 9011
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Temperature range, installation, max.
- 120 °C
Colourblack
UL 94 flammability ratingV-0
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC000886
- eClass 9.0
- 27-14-11-33
- eClass 10.0
- 27-14-11-33
ETIM 7.0EC000886
eClass 9.127-14-11-33
System Parameters
- Product family
- OMNIMATE Power - series WGK
Packing
- VPE length
- 50 mm
- VPE height
- 150 mm
VPE width80 mm
