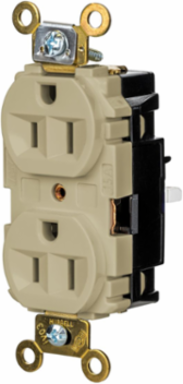

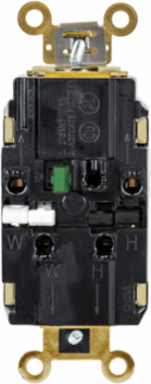

Hubbell Wiring Device-Kellems HBL5262STI EdgeConnectTM Duplex Receptacle, 2-Pole 3-Wire, 15A 125V, Screwless Terminal, Ivory
- MPN: HBL5262STI
- UPC: 783585687513
- PPN: HBL-HBL5262STI
- UNSPSC: 39121406
CAD
$28.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, EdgeConnect™, Duplex Receptacle, Industrial Grade, 2-Pole 3-Wire, 15A 125V, 5-15R, Screwless Terminal, Ivory
Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
- EdgeConnect™ Technology, Screwless Termination
Specifications
Additional
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- Terminal Type
- Screwless
- Width
- 1.900 in
- Material
- Thermoplastic/C, Brass, Copper Alloy, Plated Steel
- Flammability
- UL 94 V-2
- Standards
- UL Listed to UL498; CSA 22.2 No. 42; Fed. Spec. W-C-596; NEMA WD-6 Compliant
- Color
- Ivory
- Series
- EdgeConnectTM Series
- Type
- Standard Duplex
- Application
- Heavy Duty
Voltage125 V
Number of Wires3-Wire
SizeStandard Sized Product
Mounting TypeScrew Mount
Dielectric StrengthWithstands 2,000 V minimum
Operating Temperature-40 C to 75 C
NEMA Rating5-15R
Country of OriginCN
StyleFinder Groove Face
PhaseSingle
Wire Size#14 AWG to #10 AWG
