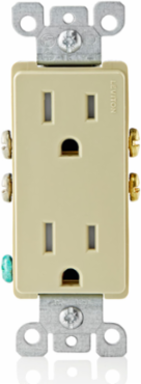

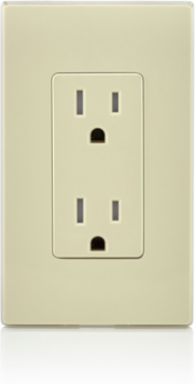

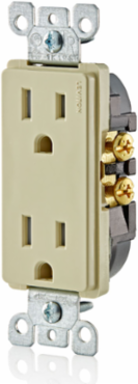

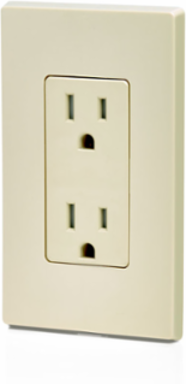

Leviton T5325-I 15 Amp Tamper-Resistant Duplex Outlet, 125 Volt, Grounding, Ivory
Leviton T5325-I 15 Amp Tamper-Resistant Duplex Outlet, 125 Volt, Grounding, Ivory
- MPN: T5325-I
- UPC: 078477381762
- PPN: LEV-T5325-I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$2.18/ EA
Description
15 Amp, 125 Volt, NEMA: 5-15R, Pole: 2, 3-Wire, Tamper-Resistant, Decora, Duplex Receptacle/Outlet, Straight Blade, Grounding, Quickwire Push-In & Side, Standards and Certifications: UL/CSA, Warranty: 2 Year Limited, NEC compliant - Ivory
Features
- Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Shallow depth for maximum wiring room
- Double-wipe power contacts for reliable conductivity and plug retention
- Heavy-gauge zinc-plated steel mounting strap
- Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
- Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
- TR symbol on strap assures they meet the latest NEC requirements
- Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
- Limited 2-year warranty
- SAFE – Tamper-resistant offers protection from electrical shocks
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Quickwire push-in and side wiring for easy installation
- CONVENIENT - TR symbol on strap assures they meet the latest NEC requirements
Specifications
Product Features
- Amperage
- 15 A
- Color
- Ivory
- Feature
- Tamper-Resistant
- NEMA
- 5-15R
- Terminal Accom.
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Torque Range
- 14 – 18 in.-lbs
- Voltage
- 125 VAC
- Wire
- 3
Blade TypeStraight Blade
Company/brandDecora
GroundingGrounding
Pole2
TerminationQuickwire Push-In & Side
TypeDuplex Receptacle
Warranty2-Year Limited
Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Standards & Certifications
- CSA C22.2 No. 42
- File 152105; Class 6233-01
- UL 498
- File E13399
NOMNOM Certified
