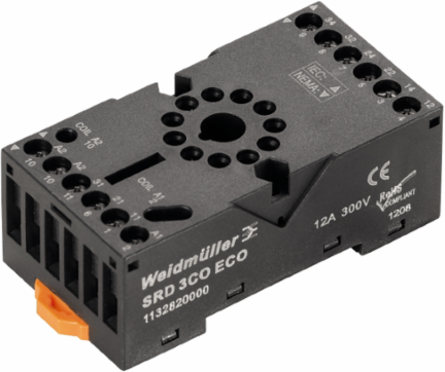

Weidmuller 1132820000 D-Series Relay Module, 3 CO Contacts, 12 A Continuous Current, 3.02 Inch Height
- MPN: 1132820000
- PPN: WDM-1132820000
CAD
$8.04
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
D-SERIES DRR, Relay bases, Number of contacts: 3 CO contact, Continuous current: 12 A, Screw connection
Documentation & Downloads
Specifications
General Data
| Rail | TS 35 |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | black |
|---|
Approvals
| Approvals | CE, cURus |
|---|---|
| UL File Number Search | E355547 |
| ROHS | Conform |
|---|

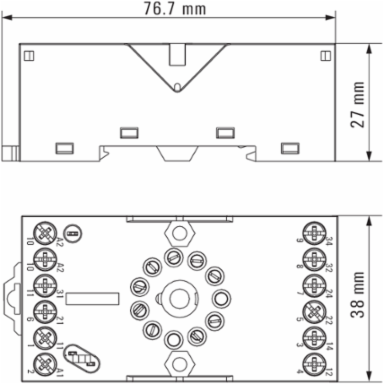

Dimensions And Weights
| Width | 38 mm |
|---|---|
| Height | 76.7 mm |
| Depth | 27 mm |
| Net weight | 60.2 g |
| Width (inches) | 1.496 inch |
|---|---|
| Height (inches) | 3.02 inch |
| Depth (inches) | 1.063 inch |
Connection Data
| Wire connection method | Screw connection |
|---|---|
| Tightening torque, min. | 0.5 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire cross-section, solid, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Blade size | size PH1 |
| Stripping length, rated connection | 7 mm |
|---|---|
| Tightening torque, max. | 1 Nm |
| Clamping range, max. | 2.5 mm² |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1 mm² |
Rated Data Ul
| Certificate No. (cURus) | E355547 |
|---|
Contact Data
| Contact type | 3 CO contact |
|---|
Classifications
| ETIM 6.0 | EC001456 |
|---|---|
| eClass 9.0 | 27-37-16-03 |
| eClass 10.0 | 27-37-16-03 |
| ETIM 7.0 | EC001456 |
|---|---|
| eClass 9.1 | 27-37-16-03 |
Output
| Rated switching voltage | 250 V AC |
|---|---|
| Continuous current | 12 A |
| Max. switching voltage, AC | 300 V |
|---|
Product Information
| Product information | For this socket, a cross connection is not available.For this socket, markers are not available. |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Surge voltage category | III |
|---|---|
| Protection degree | IP20 |
| Creepage and clearance distance input – output | ≥ 4 mm |
| Impulse withstand voltage | 4.8 kV (1.2/50 µs) |
| Pollution severity | 2 |
|---|---|
| Dielectric strength, Input/Output | 2.5 kVeff / 1 Min. |
| Dielectric strength of neighbouring contacts | 2.21 kVeff/ 1 min |
Temperatures
| Humidity | 35...85 % rel. humidity, no condensation |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 65 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -40 °C...65 °C |
Further Details Of Approvals / Standards
| Standards | EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508 |
|---|
| Certificate No. (cURus) | E355547 |
|---|
