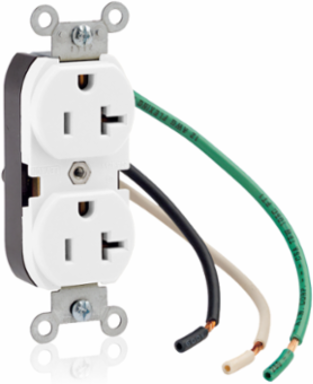

Leviton 5340-W Commercial Grade 20 Amp Duplex Receptacle Outlet, Self-Grounding, 125 Voltage
- MPN: 5340-W
- UPC: 078477236697
- PPN: LEV-5340-W
CAD
$23.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Pre-Wired Leads, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Base Material
- Thermoplastic
- Bushing
- Die Cast Aluminum
- Cover Material
- Thermoplastic
- Grounding Leads
- 6", #12 AWG THHN
- Mounting Screws
- Triple Combination Head, Steel
- Power Contacts
- Brass, triple wipe
- Terminal Screws
- 12GA THHN Wire Lead 6 Inch
Body MaterialNylon
ColorWhite
Face MaterialNylon
Grounding Screw12GA THHN Green Wire Lead 6 Inch
Mounting StrapGalvanized Steel with Riveted Ground Contacts
Terminal Leads6", #12 AWG THHN
Mechanical Specifications
- Lead Identification
- Leads identified in accordance with UL 498 (black, white & green)
- Screw Terminal Torque
- 14-18 in-lbs
- Termination
- Pre-Wired Leads
Product IDRatings are permanently marked on device
Terminal IDBlack-Hot, Green-Ground, White-Neutral
Product Features
- Device Type
- Duplex Receptacle Outlet
- Grade
- Commercial Specification Grade
FeatureSmooth Face
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Maximum Working Voltage
- 125V as rated
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingSelf-Grounding
Pole2
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
