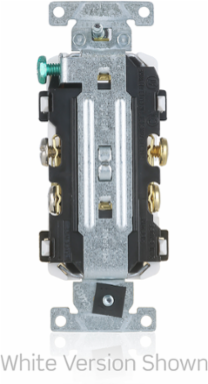

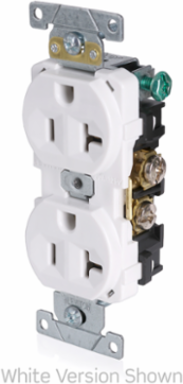

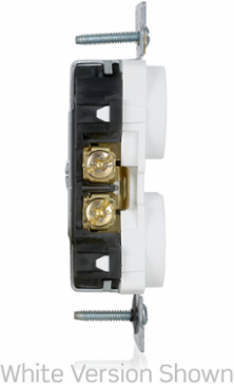

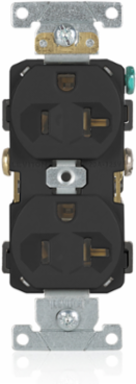

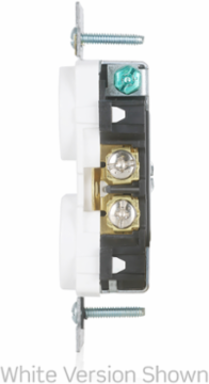

Leviton BR20-E 20 Amp Commercial Grade Duplex Receptacle Outlet, NEMA 5-20R, Self-Grounding, 125 Volt
Leviton BR20-E 20 Amp Commercial Grade Duplex Receptacle Outlet, NEMA 5-20R, Self-Grounding, 125 Volt
- MPN: BR20-E
- UPC: 078477819821
- PPN: LEV-BR20-E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$10.18/ EA
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Black
Specifications
Standards and Certifications
- ANSI
- C-73
- Certification Listing
- NOM
- Warranty
- 10-Year Limited
Applicable StandardsUL 498| Fed Spec W-C-595G| CSA C22.2 No. 42
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- Polypropylene
- Color
- Black
- Ground Clips
- Brass
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Terminal Screws
- Plated Steel 8-32
Clamp NutsBrass
Face MaterialNylon
Grounding ScrewSteel 8-32
Strap MaterialZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Device Type
- Duplex Receptacle Outlet
- Grade
- Commercial Specification Grade
Feature 4Indented Face
Environmental Specifications
- Operating Temperature
- -40°C to 75°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
