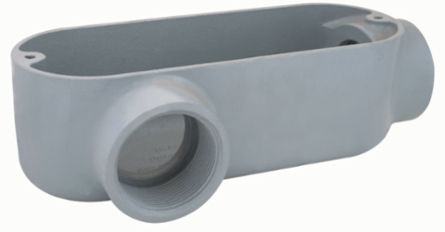

Killark EALR-7 Aluminum Conduit Body LR Type Hub Size 2-1/2 Inch 142 cu in Volume
Killark EALR-7 Aluminum Conduit Body LR Type Hub Size 2-1/2 Inch 142 cu in Volume
- MPN: EALR-7
- UPC: 783936165363
- PPN: HBL-EALR-7
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$513.37/ EA
Description
E Series - Aluminum Conduit Body - LR Type - Hub Size 2-1/2 Inch
Features
- Flat back design for easy mounting close to walls
- Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish
- May be used on aluminum or steel conduit
- Lightweight, makes installation simple
- Ideal for commercial and light industrial applications
- Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 142 cu. in.
Specifications
Specifications
- Country of Origin
- India
- Application
- For use on threaded rigid/IMC conduit. Use conduit bodies for making turns in conduit systems, connecting conduit sections, as pull outlets, and to provide openings for maintenance and making taps and splices to conductors.
- Height
- 5.5 in
- Length
- 18 in
- Type
- Conduit Body
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 2-1/2"LR CONDUIT BODY THREADED
- Harmonization Code
- 7609000000
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LR
- Series
- E Series
- BOX SIZE
- 5.500x18.000x6.500 (in)
- Carton - Total Units
- 1 EA
Dimensions18 in x 6.5 in x 5.5 in
ColorGray
Hub Size2-1/2"
Special FeaturesFlat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 142 cu. in.
Width6.5 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging5.45
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936165363
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
