Killark EBT-6 Aluminum Conduit Body T Type Hub Size 2 Inch, Lightweight, Weather Resistant
Killark EBT-6 Aluminum Conduit Body T Type Hub Size 2 Inch, Lightweight, Weather Resistant
- MPN: EBT-6
- UPC: 783936165837
- PPN: HBL-EBT-6
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$291.78/ EA
Description

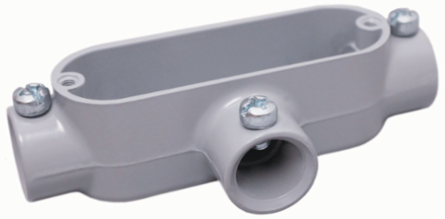

E Series - Aluminum Conduit Body - Set Screw Type - T Type - Hub Size 2Inch
Features
- Flat back design for easy mounting close to walls
- Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish
- May be used on aluminum or steel conduit
- Lightweight, makes installation simple
- Ideal for commercial and light industrial applications
- Furnished with cover and gasket
- Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 70 cu. in.
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 3.430 in
- Color
- Gray
- Hub Size
- 2"
- Special Features
- Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 70 cu. in.
- Width
- 3.43 in
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 2.8
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- BOX SIZE
- 4.031x10.750x3.430 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936165837
- Master Pack Description
- Each
Dimensions10.75 in x 3.43 in x 4.031 in
ApplicationFor use with EMT conduit in dry locations. Use conduit bodies for making turns in conduit systems, connecting conduit sections, as pull outlets, and to provide openings for maintenance and making taps and splices to conductors.
Height4.031 in
Length10.75 in
TypeConduit Body
ARRA CompliantContact Manufacturer
Description - Invoice2" T CONDUIT BODY SET SCRE
Harmonization Code7609000000
Lead Time21 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternT
Base Unit of MeasureEA
Carton - Gross Weight per Pack14.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Certifications
- EU RoHS Indicator
- Contact Manufacturer
