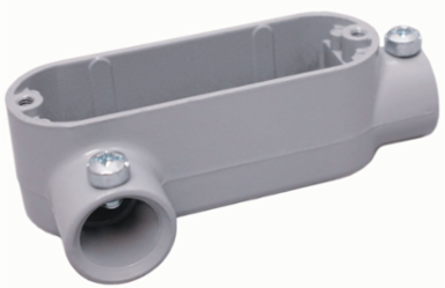

Killark EBLR-1 Aluminum 1/2 Inch Set Screw Conduit Body, 4 cu in Volume, Gray Finish
Killark EBLR-1 Aluminum 1/2 Inch Set Screw Conduit Body, 4 cu in Volume, Gray Finish
- MPN: EBLR-1
- UPC: 783936165721
- PPN: HBL-EBLR-1
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$41.20/ EA
Description
E Series Fitting, Aluminum, 1/2" Set Screw LR For EMT 10 Per
Features
- Flat back design for easy mounting close to walls
- Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish
- May be used on aluminum or steel conduit
- Lightweight, makes installation simple
- Ideal for commercial and light industrial applications
- Furnished with cover and gasket
- Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 4 cu. in.
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 2.470 in
- Color
- Gray
- Hub Size
- 1/2"
- Special Features
- Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on aluminum or steel conduit. Lightweight, makes installation simple. Volume is 4 cu. in.
- Width
- 2.47 in
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.29
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- BOX SIZE
- 8.000x19.000x10.750 (in)
- Carton - Number of Sub Packs
- 100
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936165721
- Master Pack Description
- Each
Dimensions4.375 in x 2.47 in x 1.437 in
ApplicationFor use with EMT conduit in dry locations. Use conduit bodies for making turns in conduit systems, connecting conduit sections, as pull outlets, and to provide openings for maintenance and making taps and splices to conductors.
Height1.437 in
Length4.375 in
TypeConduit Body
ARRA CompliantContact Manufacturer
Description - Invoice1/2" SET SCR LR FOR EMT 10 PER
Harmonization Code7609000000
Lead Time21 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternLR
Base Unit of MeasureEA
Carton - Gross Weight per Pack29.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units100 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
