nVent Hoffman E12PBSS6 Pushbutton Screw Cover Type 4X, 12PBx30.5mm, SS316
- MPN: E12PBSS6
- UPC: 783510849504
- PPN: HOF-E12PBSS6
- UNSPSC: 39121326
CAD
$1473.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

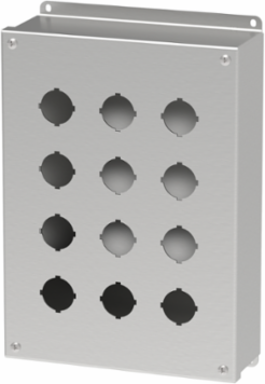

This stainless steel enclosure is pre-punched for easy installation of 30.5mm or 22.5mm components. This Pushbutton Screw Cover Type 4X, E12PBSS6 item measures 12PBx30.5mm with a material of SS316.
Features
- Prepunched 30.5mm or 22.5mm holes
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 216 |
| Protection Rating | NEMA Type 12 |
| Finish | Brushed #4 |
| Hole Size (HS) | 30.5 |
| Overall Dimensions (L x W) | 324 x 221 |
| IP Rating | IP66 |
| Weight | 8 |
| Material | Stainless Steel |
| Height (H) | 298 |
|---|---|
| Depth (D) | 76 |
| Product Family | PushButton |
| Thickness (T) | 1.98 |
| Hole Quantity | 12 |
| Mounting (G x H) | 311 x 194 |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Number of Holes | 12 |
| Size | 12PB x 30.5mm |
