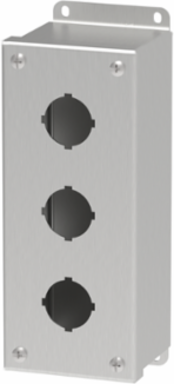

nVent Hoffman E3PBSS6 Pushbutton Screw Cover Type 4X, 3PBx30.5mm, SS316
- MPN: E3PBSS6
- UPC: 783510849108
- PPN: HOF-E3PBSS6
- UNSPSC: 39121326
CAD
$729.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This stainless steel enclosure is pre-punched for easy installation of 30.5mm or 22.5mm components. This Pushbutton Screw Cover Type 4X, E3PBSS6 item measures 3PBx30.5mm with a material of SS316.
Features
- Prepunched 30.5mm or 22.5mm holes
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 83
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Hole Size (HS)
- 30.5
- Overall Dimensions (L x W)
- 229 x 88
- IP Rating
- IP66
- Number of Holes
- 3
- Size
- 3PB x 30.5mm
Height (H)203
Depth (D)70
Product FamilyPushButton
Thickness (T)1.98
Hole Quantity3
Mounting (G x H)216 x 60
Weight2.54
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
