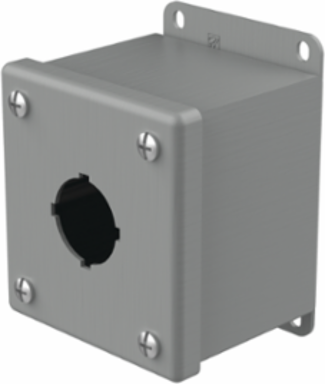

nVent E1PB Pushbutton Enclosures Type 12, 1PBx30.5mm, Gray, Steel
- MPN: E1PB
- UPC: 783510580100
- PPN: HOF-E1PB
- UNSPSC: 39121326
CAD
$130.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pre-cut pushbutton enclosures house and protect push buttons, lights and switches. This Pushbutton Enclosures Type 12, E1PB item measures 1PBx30.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Additional
- Hole Size
- 30.5 mm
- Finish
- Powder Coated, ANSI 61 Gray
- IP Rating
- IP65
- Height
- 89 mm
- Depth
- 70 mm
- Thickness
- 1.52 mm
- Mounting (G x H)
- 102 x 60 mm
- Gauge
- 14 or 16 gauge
- Gasket
- Oil-resistant
- Cover Screws
- Captivated, thread into sealed wells
- Grounding
- Stud on body
- Color
- Gray
- Product Family
- PushButton
MaterialSteel
NEMA RatingNEMA Type 12, Indoor, dust-resistant
Size1PB x 30.5 mm
Width83 mm
Overall Dimensions114 x 88 mm
Number of Holes1
Weight1.4 kg
Mounting BracketsExternal welded-on
Pushbutton HolesFactory stamped 4-way
Bonding ProvisionOn cover
ConstructionSeams continuously welded and ground smooth
Color CodeANSI 61
Type12
