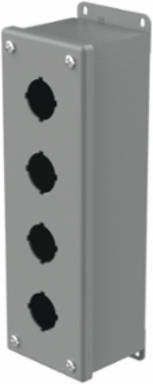

nVent E4PB Pushbutton Enclosures Type 12, 4PBx30.5mm, Gray, Steel
- MPN: E4PB
- UPC: 783510580407
- PPN: HOF-E4PB
- UNSPSC: 39121326
CAD
$191.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pre-cut pushbutton enclosures house and protect push buttons, lights and switches. This Pushbutton Enclosures Type 12, E4PB item measures 4PBx30.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12, IP65
- Hole Size
- 30.5 mm
- Overall Dimensions (L x W)
- 286 x 88 mm
- Width
- 83 mm
- Thickness
- 1.9 mm
- Material
- Steel
- Color
- Gray (ANSI 61)
- Seams
- Continuously welded and ground smooth
- Gasket
- Oil-resistant
- Grounding
- Stud on body
- Cover Hinge
- Internal detachable hinge for multiple columns
Number of Holes4
Size4PB x 30.5 mm
Height254 mm
Depth70 mm
Weight3.1 kg
FinishTextured polyester powder coat
MountingExternal welded-on brackets (273 x 60 mm)
Cover ScrewsCaptivated, thread into sealed wells
Bonding ProvisionOn cover
Pushbutton Hole StyleFactory stamped 4-way
