nVent Hoffman

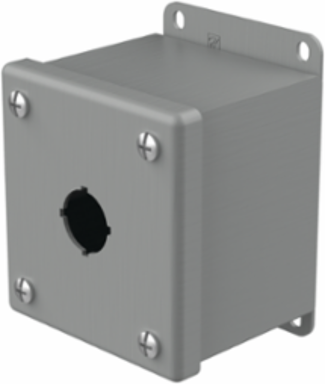

nVent Hoffman E1PBG Pushbutton Enclosures Type 12, 1PBx22.5mm, Gray, Steel

Pushbutton Enclosures Type 12, 1PBx22.5mm, Gray, Steel
  • MPN: E1PBG
  • UPC: 783510579302
  • PPN: HOF-E1PBG
  • UNSPSC: 39121326

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$126.00/ EA

Description

Pre-cut pushbutton enclosures house and protect push buttons, lights and switches. This Pushbutton Enclosures Type 12, E1PBG item measures 1PBx22.5mm with a material of Steel colored Gray.

Features

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

Specifications

Protection Rating
NEMA Type 12, IP65
Finish
Powder coated, textured polyester powder paint
Hole Size
22.5 mm
Size
1PB x 22.5 mm
Height (H)
89 mm
Width (W)
83 mm
Weight
1.3 kg
Mounting (G x H)
102 x 60 mm
Gasket
Oil-resistant
Pushbutton Holes
Factory stamped 4-way
Bonding Provision
On cover
Hinge
Internal detachable hinge for multiple columns
MaterialSteel
ColorGray, ANSI 61
Number of Holes1
Overall Dimensions (L x W)114 x 88 mm
Depth (D)70 mm
Thickness (T)1.52 mm
Gauge16
ConstructionSeams continuously welded and ground smooth
Mounting BracketsExternal welded-on
Cover ScrewsCaptivated, thread into sealed wells
GroundingStud on body
