nVent Hoffman E4SPBY25 Extra-Large Pushbutton Enclosure Type 12, 4PB x 30.5mm, Gray, Steel, IP65
- MPN: E4SPBY25
- UPC: 783510588700
- PPN: HOF-E4SPBY25
- UNSPSC: 39121326
CAD
$337.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

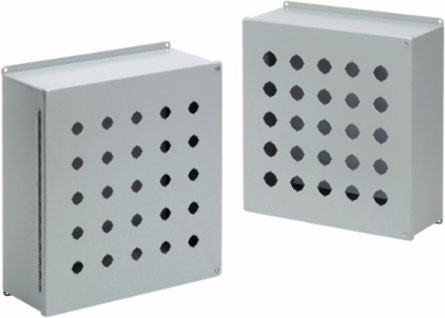

Extra large pre-cut pushbutton enclosures are ideal when multiple lights, switches and buttons are needed. This Extra-Large Pushbutton Enclosures Type 12, E4SPBY25 item measures 4PBx30.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Continuous hinge
- Factory stamped 4-way pushbutton holes
- Oil-resistant gasket
- Removable 14 gauge panel included, supported by weldnuts
- Bonding provision on cover
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 191 |
| Protection Rating | NEMA Type 12 |
| Finish | Powder Coated |
| Thickness (T) | 1.9 |
| Hole Quantity | 4 |
| IP Rating | IP65 |
| Number of Holes | 4 |
| Size | 4PB x 30.5mm |
| NEMA Rating | 12 Indoor, dust-resistant |
| Height (H) | 216 |
|---|---|
| Depth (D) | 152 |
| Product Family | PushButton |
| Color Code | ANSI 61 |
| Hole Size (HS) | 30.5 |
| Mounting (G x H) | 229 x 168 |
| Weight | 9.02 |
| Material | Steel |
| Color | Gray |
