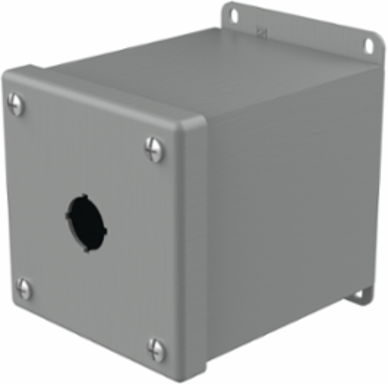

nVent Hoffman E1PBXM Extra-Deep Pushbutton Enclosure 1PB x 22.5mm, Gray Steel, NEMA 12, IP65
- MPN: E1PBXM
- UPC: 783510130350
- PPN: HOF-E1PBXM
- UNSPSC: 39121326
CAD
$162.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Extra deep pre-cut pushbutton enclosures give the most room for deep contact blocks and wiring. This Extra-Deep Pushbutton Enclosure Type 12, E1PBXM item measures 1PBx22.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12, IP65
- Hole Size
- 22.5 mm
- Color
- Gray, ANSI 61
- Thickness
- 1.52 mm (16 gauge)
- Mounting Dimensions
- 114 x 79 mm (4.50 x 3.12 in)
- Cover
- Captivated screws thread into sealed wells
- Gasket
- Oil-resistant
- Bonding Provision
- On cover
- Pushbutton Holes
- Factory stamped 4-way
- Protection Type
- 12 Indoor, dust-resistant
- Product Family
- PushButton
Number of Holes1
MaterialSteel
Overall Dimensions (L x W x D)127 x 107 x 121 mm (5.00 x 4.21 x 4.75 in)
Weight2.2 kg
FinishPowder Coated
WeldingSeams continuously welded and ground smooth
Mounting BracketsExternal welded-on
GroundingStud on body
HingeInternal detachable hinge for sizes 6.00 x 4.00 x 4.75 in and larger
Size1PB x 22.5 mm
