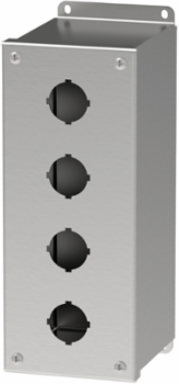

nVent Hoffman E4PBXSS Extra-Deep Pushbutton Screw Cover Type 4X, 4PBx30.5mm, SS304
nVent Hoffman E4PBXSS Extra-Deep Pushbutton Screw Cover Type 4X, 4PBx30.5mm, SS304
- MPN: E4PBXSS
- UPC: 783510593803
- PPN: HOF-E4PBXSS
- UNSPSC: 39121326
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$789.38/ EA
Description
Extra deep, Type 4X, Pushbutton Enclosures provide space for deep, contact terminal blocks. This Extra-Deep Pushbutton Screw Cover Type 4X, E4PBXSS item measures 4PBx30.5mm with a material of SS304.
Features
- Extra-deep design accommodates additional contact blocks for pushbuttons.
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 102
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Hole Quantity
- 4
- Mounting (G x H)
- 267 x 79
- Weight
- 4.7
- Material
- Stainless Steel
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)254
Depth (D)121
Product FamilyPushButton
Thickness (T)1.9
Overall Dimensions (L x W)279 x 107
IP RatingIP66
Number of Holes4
Size4PB x 30.5mm
