Bussman

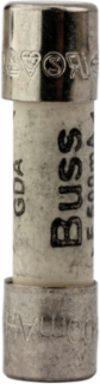

Bussman GDA-80MA Fast-Acting Fuse 80 mA, 250V, Ceramic Tube, 1.5 kAIC at 250 Vac, 0.197 Inch Width

Fast-Acting Fuse 80 mA, 250V, Ceramic Tube, 1.5 kAIC at 250 Vac, 0.197 Inch Width
  • MPN: GDA-80MA
  • UPC: 051712431163
  • PPN: BUS-GDA-80MA

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$5.32/ EA

Specifications

Specifications

Height
.787 IN
Width
.197 IN
Type
Electronic, European (IEC)
Voltage Rating
250V
Interrupt Rating
1.5 kAIC at 250 Vac
Material Type
Ceramic tube with silver-plated brass endcaps
Frequency Rating Maximum
50 HZ
Resistance
Typical DC cold: 267.9 ohms
Fuse Indicator
Non Indicating
Length.197 IN
Weight.01 LB
ApplicationElectronic circuits
Amperage Rating80 mA
ConnectionFerrule end X ferrule end
Packaging TypeStandard
Melting (L2T)Typical: .0011A
Voltage DropTypical: 2600 mV
