Bussmann

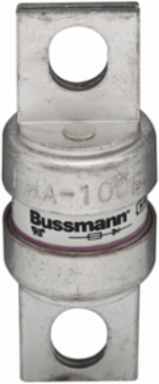

Bussmann FWA-125B Eaton Bussmann series FWA high speed fuse, 125A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud

Eaton Bussmann series FWA high speed fuse, 125A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
  • MPN: FWA-125B
  • UPC: 051712577816
  • PPN: BUS-FWA-125B

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$80.25/ EA

Description

Eaton Bussmann series FWA high speed fuse, 125A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud

Specifications

Specifications

Fuse indicator
None
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Mounting method
Stud
Utilization category
Other
Type
High speed fuse
Fuse shape
Cylindrical, center bolted tags
Voltage rating
150 V
Voltage type
AC/DC
Interrupt rating200 kAIC Vac (70-1000 A)
Clearing (I2T)18000
ConnectionBlade end x blade end
Amperage Rating125 A
Watt losses11.2 W
Rated switching capacity100 A
Pre arc (I2T)1870
ApplicationDC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging typeStandard

General

UPC
051712577816
Product Length/Depth
26 mm
Product Width
72 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590020190
Product Height26 mm
Product Weight88 g
CompliancesCE Marked
