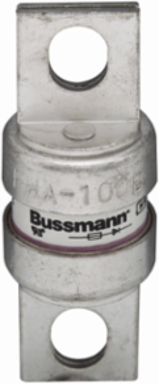

Bussmann FWA-200B High Speed Fuse 200A 500V 200 kAIC AC/DC Blade End x Blade End
- MPN: FWA-200B
- UPC: 051712577830
- PPN: BUS-FWA-200B
CAD
$78.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series FWA high speed fuse, 500V, 200A, 200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A), None, High speed fuse, Blade end X blade end, Stud
Features
- Engineered precisely for medium-voltage industrial frameworks, this 200A, 150 VAC/VDC high-speed fuse delivers continuous, stable current capacity without premature aging or nuisance tripping. By maintaining a minimal watt loss of just 17.6W, it optimizes system energy efficiency and reduces thermal overhead inside your crowded control panels.
- Featuring a precision-engineered melting I2t pre-arc threshold of 4,780 and a clearing I2t of 45,000, this fuse delivers superior cycling capability under varying workloads. It bridges the gap between rugged durability against harmless, routine inrush current and instantaneous clearing action during true fault conditions.
- Built to rigid global electrical safety specifications, this product is fully UL Recognized and CE Marked, guaranteeing it meets standard industrial safety benchmarks. This regulatory compliance gives engineering teams complete assurance during strict facility inspections and ensures compliance with factory insurance policies.
Documentation & Downloads
Specifications
Key Specifications
- Fuse indicator
- None
- Construction size
- Other
- Insulated metal gripping lugs (IMGL)
- No
- Mounting method
- Stud
- Utilization category
- Other
- Type
- High speed fuse
- Fuse shape
- Cylindrical, center bolted tags
- Voltage rating
- 150 V
- Voltage type
- AC/DC
Interrupt rating200 kAIC Vac (70-1000 A)
Clearing (I2T)45000
ConnectionBlade end x blade end
Amperage Rating200 A
Watt losses17.6 W
Rated switching capacity100 A
Pre arc (I2T)4780
ApplicationDC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging typeStandard
General
- UPC
- 051712577830
- Product Length/Depth
- 26 mm
- Product Width
- 72 mm
- Warranty
- Not Applicable
- Certifications
- UL Recognized
EAN5027590020275
Product Height26 mm
Product Weight83 g
CompliancesCE Marked
