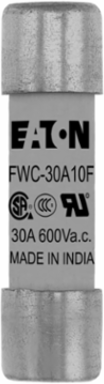

Bussmann FWC-30A10F High Speed Cylindrical Fuse 30A 600V 200 kAIC Vac Ferrule End
- MPN: FWC-30A10F
- UPC: 051712370851
- PPN: BUS-FWC-30A10F
CAD
$33.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Cylindrical Fuse 30A 600V 200 kAIC Vac Ferrule End
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Non Indicating |
|---|---|
| Construction size | 10 mm x 38 mm |
| Connection | Ferrule end x ferrule end |
| Amperage Rating | 30 A |
| Utilization category | aR (accompanied semiconductor protection) |
| Type | High speed fuse |
| Breaking capacity | 200 A |
| Pre arc (I2T) | 95 |
| Application | DC common bus, DC drives, power converters/rectifiers and reduced voltage starters |
| Packaging type | Standard |
| Interrupt rating | 50 kAIC at 700 Vdc |
|---|---|
| Clearing (I2T) | 600 at 600 V |
| Release characteristic | Other |
| Frequency rating - max | 62 Hz |
| Watt losses | 7.5 W |
| Fuse shape | Cylindrical |
| Frequency rating - min | 45 Hz |
| Voltage rating | 600 V |
| Voltage type | AC/DC |
General
| UPC | 051712370851 |
|---|---|
| Product Length/Depth | 44 mm |
| Product Width | 54 mm |
| Warranty | Not Applicable |
| Certifications | CSA Certified |
| EAN | 5027590499385 |
|---|---|
| Product Height | 23 mm |
| Product Weight | 9.4 g |
| Compliances | CE Marked |
