Bussman

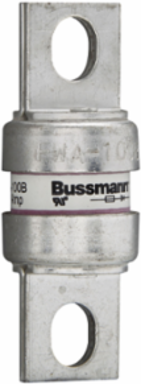

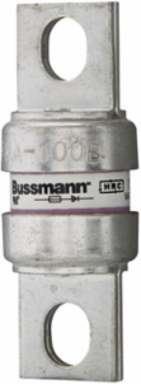

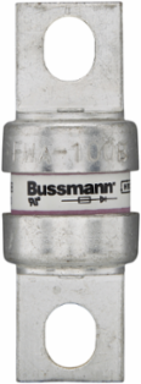

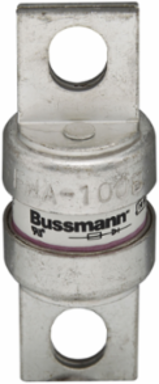

Bussman FWA-350B High Speed Fuse, 350A, 500V, Cylindrical, 67MM Length, 25.4MM Width

High Speed Fuse, 350A, 500V, Cylindrical, 67MM Length, 25.4MM Width
High Speed Fuse, 350A, 500V, Cylindrical, 67MM Length, 25.4MM Width
High Speed Fuse, 350A, 500V, Cylindrical, 67MM Length, 25.4MM Width
High Speed Fuse, 350A, 500V, Cylindrical, 67MM Length, 25.4MM Width
  • MPN: FWA-350B
  • UPC: 051712577861
  • PPN: BUS-FWA-350B

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$80.35/ EA

Specifications

Specifications

Height
25.4 MM
Width
25.4 MM
Type
Fuse
Voltage Rating
500V
Amperage Rating
350A
Interrupt Rating
200 kAIC Vac (70-1000A), 20 kAIC at 150 Vdc (70-800A), 100 kAIC at 80 Vdc (70-1000A)
Construction Size
Other
Packaging Type
Standard
Fuse Shape
cylindrical with centre-bolted tags
Insulated Metal Gripping Lugs (IMGL)
No
Voltage Type
AC/DC
Rated switching capacity
100 A
Length67 MM
Weight82 G
ApplicationDC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Voltage Rating Numeric150 V
Amperage Rating Numeric350 A
ConnectionBlade end X blade end
MountingStud
Clearing (I2T)140000
Fuse IndicatorNone
Pre Arc (I2T)15700
Watt Losses30.6
