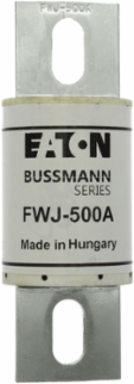

Bussmann FWJ-500A Eaton Bussmann series high speed North American fuse

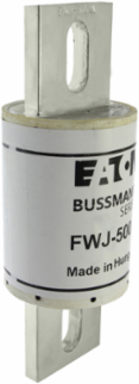

Eaton Bussmann series high speed North American fuse - https://media.province-electric.com/eaton/2019q2/7e4a3f575f763b3222660064548c2f2ca8a6f6ff-medium.png

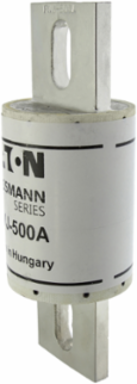

Eaton Bussmann series high speed North American fuse - https://media.province-electric.com/eaton/2019q2/ada82fedcfca10703ff109857b6b1d4209b34c73-medium.png

Eaton Bussmann series high speed North American fuse - https://media.province-electric.com/eaton/2019q2/1c1aff77606e18010b2bdeceb1f1456e546fab25-medium.png

Eaton Bussmann series high speed North American fuse

MPN: FWJ-500A
UPC: 051712796279
PPN: BUS-FWJ-500A

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1896.27/ EA

Qty:

Loading add to cart quantity...

Description

Eaton Bussmann series high speed North American fuse

Specifications

Height: 51 MM

Width: 51 MM

Type: Fuse

Voltage Rating: 700 Vac/dc

Amperage Rating: 500A

Interrupt Rating: 25 kAIC (35-200A), 100 kAIC (250-2000A), 50 kAIC at 800 Vdc (35-200A, 450-600A)

Construction Size: Other

Packaging Type: Standard

Fuse Shape: centre-bolted tags

Insulated Metal Gripping Lugs (IMGL): No

Voltage Type: AC/DC

Rated switching capacity: 100 A

Length183 MM

Weight4.84 LB

Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters

Voltage Rating Numeric1000 V

Amperage Rating Numeric500 A

ConnectionBlade end X blade end

MountingStud

Clearing (I2T)Clearing at 1000V: 329000

Fuse IndicatorNone

Pre Arc (I2T)39500

Watt Losses95W
