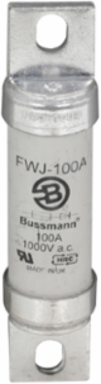

Bussmann FWJ-100A High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC

High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC - https://media.province-electric.com/eaton/2019q2/dc1e74787b98ba1a5b264f4e2cb37996f6dc88b9-medium.png

High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC - https://media.province-electric.com/eaton/2019q2/08c3eeac31ee833627d83a1d0aba76b2ae488c34-medium.png

High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC - https://media.province-electric.com/eaton/2019q2/ae805e02b48d4f65289b848cf2c5a7352c8ec2b4-medium.png

High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC

High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC

High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC

High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC

Bussmann FWJ-100A High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC

MPN: FWJ-100A
UPC: 051712796194
PPN: BUS-FWJ-100A

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$223.00/ EA

Loading add to cart quantity...

Description

High Speed Fuse 100A 1000V AC/DC, 25MM x 125MM, Interrupt Rating 25 kAIC

Specifications

Specifications

Height: 25 MM

Width: 25 MM

Type: Fuse

Voltage Rating: 700 Vac/dc

Amperage Rating: 100A

Interrupt Rating: 25 kAIC (35-200A), 100 kAIC (250-2000A), 50 kAIC at 800 Vdc (35-200A, 450-600A)

Construction Size: Other

Packaging Type: Standard

Fuse Shape: centre-bolted tags

Insulated Metal Gripping Lugs (IMGL): No

Voltage Type: AC/DC

Rated switching capacity: 25 A

Length125 MM

Weight.42 LB

Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters

Voltage Rating Numeric1000 V

Amperage Rating Numeric100 A

ConnectionBlade end X blade end

MountingStud

Clearing (I2T)Clearing at 1000V: 17500

Fuse IndicatorNone

Pre Arc (I2T)2800

Watt Losses15W
