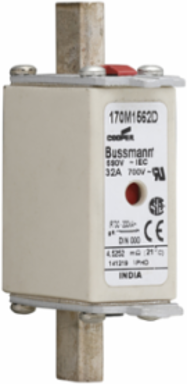

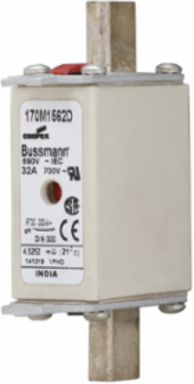

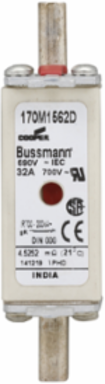

Bussmann 170M1562D High Speed Square Body Fuse 32A 690V Class gR
- MPN: 170M1562D
- UPC: 051712334730
- PPN: BUS-170M1562D
CAD
$242.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 32A 690V Class gR
Documentation & Downloads
Specifications
Key Specifications
| Height | 48 MM |
|---|---|
| Width | 21 MM |
| Type | Fuse |
| Voltage Rating Numeric | 690 V |
| Amperage Rating Numeric | 32 A |
| Class | Class gR |
| Construction Size | Other |
| Clearing (I2T) | Clearing at 660V: 285 |
| Fuse Indicator | Combination fuse status indicator |
| Pre Arc (I2T) | 40 |
| Voltage Type | AC |
| Length | 79 MM |
|---|---|
| Weight | 134.7 G |
| Application | DC common bus, DC drives, power converters/rectifiers, reduced voltage starters |
| Amperage Rating | 32A |
| Interrupt Rating | 200 kAIC |
| Connection | Din 43-620 blade end X Din 43-620 blade end |
| Packaging Type | Standard |
| Fuse Shape | square body with knife blade contacts |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Utilization category | gR (general purpose semiconductor protection) |
| Watt Losses | 7W |
