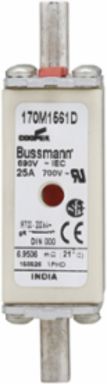

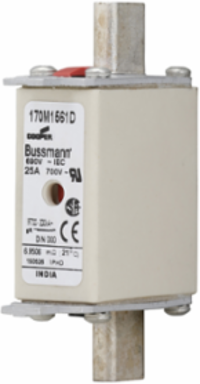

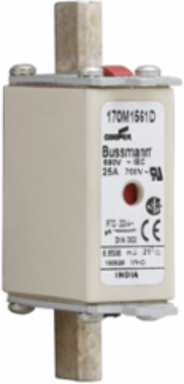

Bussmann 170M1561D High Speed Square Body Fuse 25A 690V AC 200 kAIC
- MPN: 170M1561D
- UPC: 051712334723
- PPN: BUS-170M1561D
CAD
$242.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 25A 690V AC 200 kAIC
Documentation & Downloads
Specifications
Key Specifications
- Height
- 48 MM
- Width
- 21 MM
- Type
- Fuse
- Voltage Rating Numeric
- 690 V
- Amperage Rating Numeric
- 25 A
- Class
- Class gR
- Construction Size
- Other
- Clearing (I2T)
- Clearing at 660V: 140
- Fuse Indicator
- Combination fuse status indicator
- Pre Arc (I2T)
- 19
- Voltage Type
- AC
Length79 MM
Weight134.7 G
ApplicationDC common bus, DC drives, power converters/rectifiers, reduced voltage starters
Amperage Rating25A
Interrupt Rating200 kAIC
ConnectionDin 43-620 blade end X Din 43-620 blade end
Packaging TypeStandard
Fuse Shapesquare body with knife blade contacts
Insulated Metal Gripping Lugs (IMGL)No
Utilization categorygR (general purpose semiconductor protection)
Watt Losses6W
