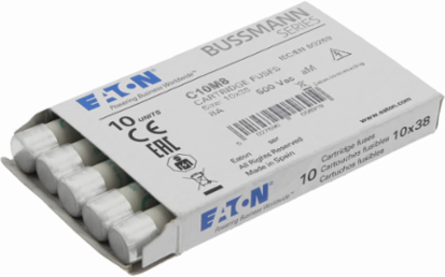

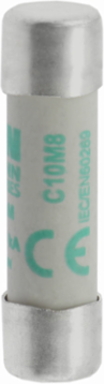

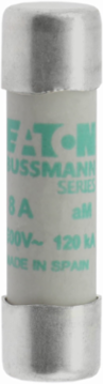

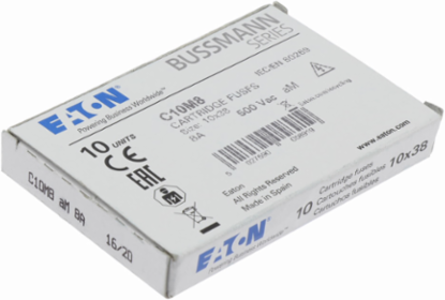

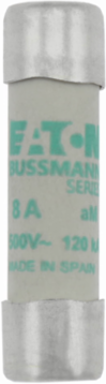

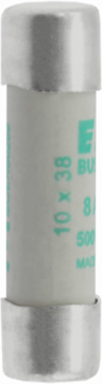

Bussmann C10M8 10 x 38 mm Cylindrical Fuse, 500 V AC, 8 A, 120 kA Breaking Capacity, Class aM
- MPN: C10M8
- UPC: 051712754576
- PPN: BUS-C10M8
CAD
$31.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
10 x 38 mm Cylindrical Fuse, 500 V AC, 8 A, 120 kA Breaking Capacity, Class aM
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Non-indicating |
|---|---|
| Construction size | 10 mm x 38 mm |
| Material | Ceramic body |
| Release characteristic | Other |
| Frequency rating - max | 62 Hz |
| Type | fuse |
| Breaking capacity | 120 kA |
| Frequency rating - min | 45 Hz |
| Voltage rating | 500 V |
| Voltage type | AC |
| Special features | Breaking Capacity 120 kA, Power Loss 0.52 W |
|---|---|
| Quantity | 10 |
| Mounting method | Holder |
| Amperage Rating | 8 A |
| Utilization category | aM (switchgear protection) |
| Fuse shape | Cylindrical |
| Fuse size | 10 x 38 mm |
| Class | Class aM |
| Application | motor protection | for industrial applications |
| Packaging type | Standard |
General
| UPC | 051712754576 |
|---|---|
| Product Length/Depth | 38 mm |
| Product Width | 10 mm |
| Warranty | 1 year limited |
| Certifications | IEC 60269 |
| EAN | 5027590493741 |
|---|---|
| Product Height | 10 mm |
| Product Weight | 8.2 g |
| Compliances | Contact factory |
