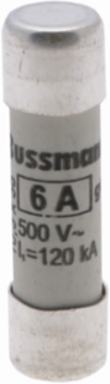

Bussmann C10G6 Low Voltage Cylindrical Fuse 500V 6A 120 kAIC Class C gL/gG 10 x 38 mm
- MPN: C10G6
- UPC: 051712754248
- PPN: BUS-C10G6
CAD
$23.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Cylindrical Fuse 500V 6A 120 kAIC Class C gL/gG 10 x 38 mm
Specifications
Key Specifications
| Fuse Indicator | CHM fuse holder |
|---|---|
| Construction Size | 10 x 38 mm |
| Quantity | 10 per package |
| Release Characteristic | Other |
| Frequency Rating Maximum | 45 HZ |
| Fuse Type | Cylindrical |
| Fuse Shape | cylindrical |
| Amperage Rating Numeric | 6 A |
| Frequency Rating Minimum | 62 HZ |
| Voltage Rating | 500V |
| Voltage Rating Numeric | 500 V |
| Packaging Type | Standard |
| Interrupt Rating | 120 kAIC |
|---|---|
| Connection | Ferrule end X ferrule end |
| Material Type | Ceramic body, Silver-plated copper endcap |
| Amperage Rating | 6A |
| Utilization Category | gL/gG (cable protection/equipment protection) |
| Type | fuse |
| Breaking Capacity | 120 KA |
| With Striker | No |
| Class | Class C gL/gG |
| Application | for industrial applications |
| Voltage Type | AC |
General
| UPC | 051712754248 |
|---|---|
| Product Length/Depth | 38 MM |
| Product Width | 10 MM |
| Warranty | 1 year limited |
| Certifications | IEC 60269 |
| EAN | 5027590493567 |
|---|---|
| Product Height | 38 MM |
| Product Weight | 38 G |
| Compliances | Contact factory |
