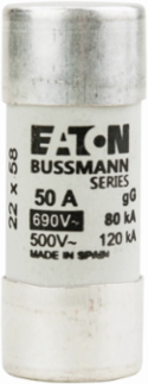

Bussmann C22G50 Eaton Bussmann series low voltage cylindrical fuse, 690V, 50A, CH22 fuse holder, fuse, Ferrule end X ferrule end, Class C gL/gG, Cylindrical, Ceramic body, Silver-plated copper endcap
Bussmann C22G50 Eaton Bussmann series low voltage cylindrical fuse, 690V, 50A, CH22 fuse holder, fuse, Ferrule end X ferrule end, Class C gL/gG, Cylindrical, Ceramic body, Silver-plated copper endcap
- MPN: C22G50
- UPC: 051712754484
- PPN: BUS-C22G50
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$79.88/ EA
Description
Eaton Bussmann series low voltage cylindrical fuse, 690V, 50A, CH22 fuse holder, fuse, Ferrule end X ferrule end, Class C gL/gG, Cylindrical, Ceramic body, Silver-plated copper endcap
Specifications
Specifications
- Fuse Indicator
- CH22 fuse holder
- Connection
- Ferrule end X ferrule end
- Material Type
- Ceramic body, Silver-plated copper endcap
- Amperage Rating
- 50A
- Utilization Category
- gL/gG (cable protection/equipment protection)
- Type
- fuse
- Breaking Capacity
- 80 KA
- With Striker
- No
- Class
- Class C gL/gG
- Application
- for industrial applications
- Voltage Type
- AC
Construction Size22 x 58 mm
Quantity10 per package
Release CharacteristicOther
Frequency Rating Maximum45 HZ
Fuse TypeCylindrical
Fuse Shapecylindrical
Amperage Rating Numeric50 A
Frequency Rating Minimum62 HZ
Voltage Rating690V
Voltage Rating Numeric690 V
Packaging TypeStandard
General
- UPC
- 051712754484
- Product Length/Depth
- 58 MM
- Product Width
- 22.2 MM
- Warranty
- 1 year limited
- Certifications
- IEC 60269
EAN5027590495486
Product Height58 MM
Product Weight58 G
CompliancesContact factory
