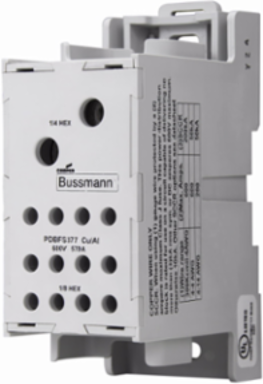

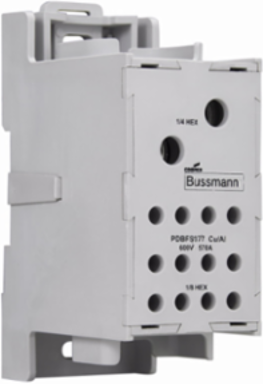

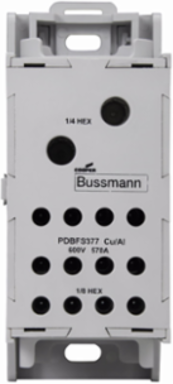

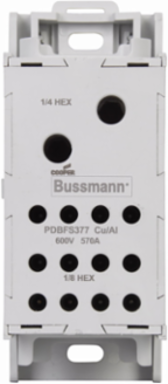

Bussmann PDBFS377 Power Distribution Block, 600 Vac/Vdc, 570A, IP-20 Finger-safe, DIN Rail, 4.6 Inch Length
- MPN: PDBFS377
- UPC: 051712659901
- PPN: BUS-PDBFS377
CAD
$117.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Power Distribution Block, 600 Vac/Vdc, 570A, IP-20 Finger-safe, DIN Rail, 4.6 Inch Length
Features
- Engineered with an enclosed, IP20-rated touch-safe design, the PDBFS377 isolates live electrical components to minimize the risk of accidental contact. This built-in shock prevention helps panel builders and industrial electricians maintain exceptionally safe working environments and easily achieve OSHA compliance without sourcing separate, costly terminal covers.
- Boasting a Short-Circuit Current Rating (SCCR) of up to 200 kA when paired with tested upstream fuses, this heavy-duty block easily clears high fault thresholds. It provides industrial engineers with the robust fault-current handling required to elevate the overall assembly rating of industrial control panels, ensuring full compliance with stringent NEC® and UL 508A safety codes.
- Designed with a high capacity of 570A at 600V AC/DC, this single-pole block accepts up to two heavy line-side conductors (up to 300 kcmil) and divides them into 12 distinct load-side ports (handling 14 to 4 AWG). This high-density architecture replaces cluttered wiring arrays with a neat, centralized junction point, drastically simplifying industrial multi-load control circuitry.
- eaturing a highly flexible, modular footprint equipped with pre-installed interlocking dovetail pins, multiple single-pole units can be ganged together into rigid multi-pole configurations seamlessly. This expandable structure saves massive layout space in tight panels while strictly maintaining the UL 1953 required 1-inch through-air and 2-inch over-surface spacing clearances.
Documentation & Downloads
Specifications
Additional
- Type
- Power distribution block
- Amperage Rating
- 570A
- Length
- 4.6 in
- Width
- 1.86 in
- Mounting
- DIN rail, panel
- Ingress Rating
- IP-20 Finger-safe
Voltage Rating600 Vac, 600 Vdc
Short Circuit Rating200 kAIC (#6-2 AWG), 100 kAIC (#14-2 AWG)
Height2.94 in
Weight0.74 lb
MaterialTin-plated aluminum connectors
