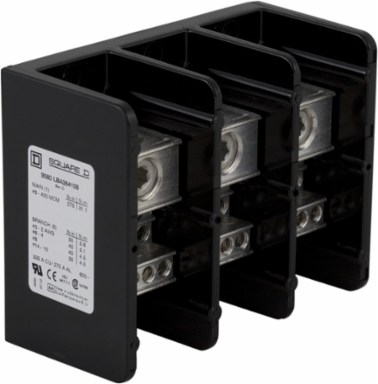

Square D 9080LBA364108 Linergy Power Distribution Block, 3 Pole, 335A Cu, 600V, 1 Line, 8 Load
Square D 9080LBA364108 Linergy Power Distribution Block, 3 Pole, 335A Cu, 600V, 1 Line, 8 Load
- MPN: 9080LBA364108
- UPC: 785901097501
- PPN: SCH-9080LBA364108
- UNSPSC: 39121410
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$172.52/ EA
Description
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one 4 to 600 kcmil copper or aluminum wire. The load side lug is rated to accept one 14 to 2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Features
- Power Distribution Blocks is perfect for splicing or distributing wires within control panels
- Has numerous configurations for power distribution and also allows customer save on panel space
- Ideal for distributing power to multiple loads
- UL component recognized and CSA certified
Specifications
Physical Attributes
- Wire Stripping Length
- line: 1.06 in, load: 0.56 in for top connection, load: 1 in for bottom connection
Conformance Attributes
- Product Certifications
- CE, UL recognized E60616 CCN XCFR2, CSA file 70361 class 6228 01
Complementary Attributes
- Line Rated Current
- 335-335 A copper, 270-270 A aluminium
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Number Of Cables
- line 1 , AWG 4...600 kcmil, copper or aluminium, load 8 , AWG 14...AWG 2, copper or aluminium
- Connections Terminals
- load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium, load lug 40 lbf.in AWG 8 copper or aluminium, load lug 50 lbf.in AWG 2 copper or aluminium, line lug 275 lbf.in AWG 6...400 kcmil copper or aluminium, load lug 35 lbf.in AWG 14...AWG 10 copper or aluminium
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Electrical Connection
- tin plated aluminium lugs
- Material
- phenolic: block
- Package Weight Lbs
- 1.039 kg
- Product Or Component Type
- Power Distribution Block
- Returnability
- Yes
- Sustainable Packaging
- No
- Ics Rated Service Breaking Capacity2
- 100 kA UL 508 A
- Medium Desc
- Power distribution block, Linergy, 3 pole, 1 line, 8 load, 335A Cu, 270A Al, 600V
- Product Kit Identifier
- N
- Ics Rated Service Breaking Capacity5
- 100 kA UL 508 A
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Number Of Terminals1 line, 8 load
Connections Terminals3load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium, load lug 40 lbf.in AWG 8 copper or aluminium, load lug 50 lbf.in AWG 2 copper or aluminium, line lug 275 lbf.in AWG 6...400 kcmil copper or aluminium, load lug 35 lbf.in AWG 14...AWG 10 copper or aluminium
Local Publishable Date2025-11-18
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Energy Efficiency OptimizedFalse
Mounting Supportsurface mount
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product9080LB
Short Circuit Current65 kA
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ue Rated Operational Voltage2600 V AC/DC
Stocking FlagN
Global Commercial StatusCommercialised
Ue Rated Operational Voltage5600 V AC/DC
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -40-302 °F
- Packaging Without Single Use Plastic
- No
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant , Compliant
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Product Compatibility9080LB43
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Power Distribution Block
Range Of Product9080LB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 2.91 in
